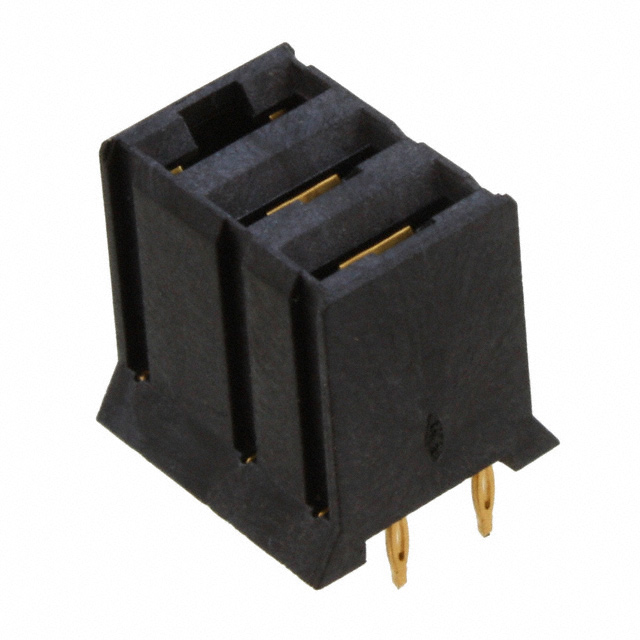

0736561000
Or copy the link below:
- Mfr.Part #
- 0736561000
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HDM 3POS PCB
- Stock
- 94
- In Stock ：
- 94
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Connector Type :
- Receptacle, Female Blade Sockets
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Columns :
- 1
- Contact Layout, Typical :
- 3 Power
- Operating Temperature :
- -55°C~105°C
- Filter Feature :
- No
- Empty Shell :
- No
- Number of Positions Loaded :
- All
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Connector Style :
- HDM
- Packaging :
- Tube
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Press-Fit
- Connector Usage :
- Backplane
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Contact Material :
- NOT SPECIFIED
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- DIN Conformance :
- No
- Total Number of Contacts :
- 3
- MIL Conformance :
- No
- Series :
- HDM (High Density Metric) 73656
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 3
- Shell Material :
- POLYETHYLENE
- Pbfree Code :
- yes
- Contact Finish :
- Gold
- Factory Lead Time :
- 7 Weeks
- Mixed Contacts :
- No
- Color :
- Black
- Datasheets
- 0736561000
HDM (High Density Metric) 73656 Series Receptacle, Female Blade Sockets Press-Fit Gold Black 30.0μin 0.76μm 3 Positions -55°C~105°C Tube Through Hole
0736561000 Overview
The product is packaged in Receptacle, Female Blade Sockets.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the HDM (High Density Metric) 73656 Series.As a result, the device runs at -55°C~105°C Operating Temperature.
0736561000 Features
HDM (High Density Metric) 73656 series
0736561000 Applications
There are a lot of Molex
0736561000 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
