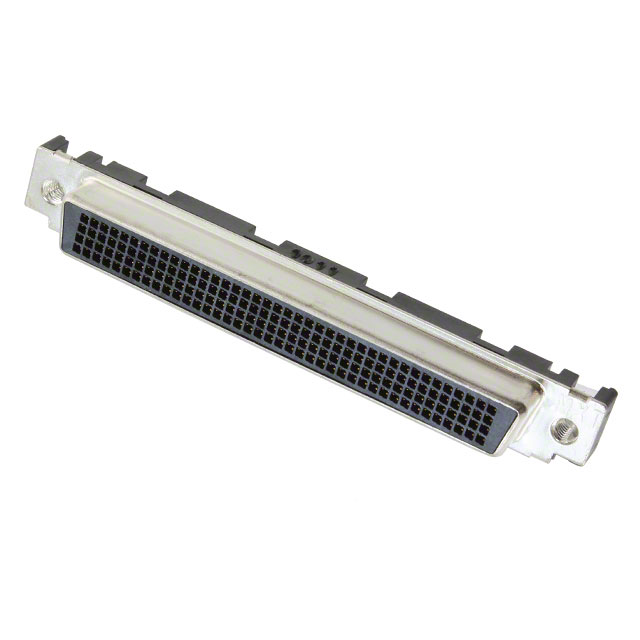

0716261001

Manufacturer :

Molex

Product Category :

D-Sub Connector Assemblies

Option :

GENERAL PURPOSE

Shell Material, Finish :

Steel, Nickel Plated

Length :

69.85mm

Shell Size, Connector Layout :

0.050 Pitch x 0.050 Row to Row

Max Supply Voltage :

40V

Termination :

Solder

Contact Material :

COPPER ALLOY

Number of Positions :

160

Number of Contacts :

160

Housing Material :

Polymer

Depth :

9.45mm

Dielectric Material :

Liquid Crystal Polymer (LCP), Glass Filled

Contact Type :

Signal

Number of Rows :

4

Packaging :

Tube

Radiation Hardening :

No

Empty Shell :

No

Flange Feature :

Housing/Shell (M3)

Connector Style :

D-Type, Board to Board, Matrix

Series :

Low Force Helix (LFH) 71626

Filter Feature :

No

Mount :

Panel, Through Hole

Contact Finish :

Gold

IEC Conformance :

No

Feature :

Board Lock, Shielded

Contact Finish Thickness :

30.0μin 0.76μm

MIL Conformance :

No

Current Rating :

1A

Pitch :

1.27mm

Mounting Type :

Panel Mount, Through Hole

DIN Conformance :

No

Gender :

Receptacle

RoHS Status :

ROHS3 Compliant

Orientation :

Vertical

Material Flammability Rating :

UL94 V-0

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Additional Feature :

POLARIZED, SHIELDED

Mixed Contacts :

No

Connector Type :

Receptacle, Female Sockets

Number of Ports :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

Operating Temperature :

-20°C~80°C

Flammability Rating :

UL94 V-0
