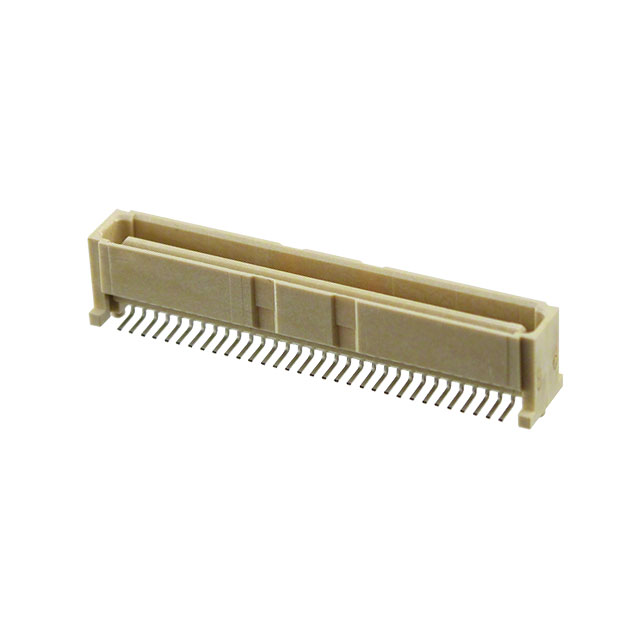

0714361164

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Operating Temperature (Max) :

85°C

Number Of PCB Rows :

2

Height Above Board :

0.289 7.35mm

Mating Information :

MULTIPAL MATING PARTS AVAILBLE

Contact Style :

CENTRONIC

Pitch :

0.039 1.00mm

Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Feature :

Board Guide

Contact Finish Thickness :

30.0μin 0.76μm

Number of Conductors :

ONE

Rated Current (Signal) :

1A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Board Mounting Option :

PEG

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Number of Positions :

64

Filter Feature :

No

Reference Standard :

CSA, UL

Total Number of Contacts :

64

UL Flammability Code :

94V-0

Insulation Material :

High Temperature Thermoplastic

Connector Type :

Plug, Center Strip Contacts

Operating Temperature (Min) :

-55°C

Pbfree Code :

yes

Packaging :

Tube

Mounting Type :

Surface Mount

Series :

PMC Mezzanine 71436

Factory Lead Time :

15 Weeks

Contact Finish :

Gold

Mixed Contacts :

No

Contact Gender :

FEMALE

Stack Height (Mating) :

9mm 11mm 14mm

PCB Contact Pattern :

RECTANGULAR
