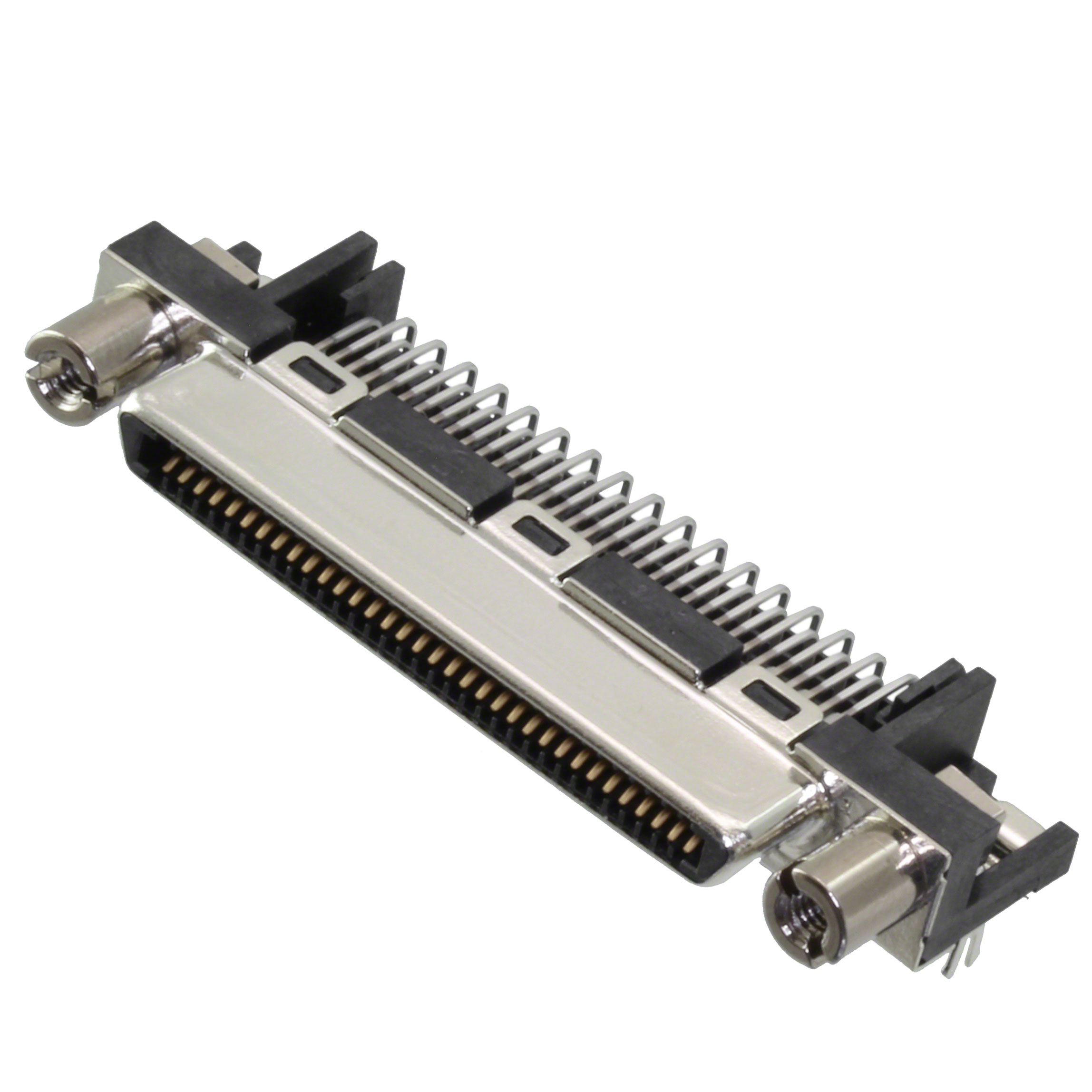

0714300006

Manufacturer :

Molex

Product Category :

Centronics Connectors

Factory Lead Time :

10 Weeks

Mounting Type :

Through Hole, Right Angle

HTS Code :

8536.69.40.30

Shell Material :

POLYETHYLENE

Orientation :

RIGHT ANGLE

Depth :

14.65mm

Number of Ports :

1

Pbfree Code :

yes

UL Flammability Code :

94V-0

Number of Contacts :

68

Connector Style :

Outer Shroud Contacts

IEC Conformance :

No

Contact Gender :

FEMALE

Mount :

Through Hole

Feature :

Board Lock, Shielded

Lead Free :

Lead Free

Lead Pitch :

800μm

Series :

Ultra+ VHDCI 71430

RoHS Status :

Non-RoHS Compliant

Flange Feature :

Mating Side (M2)

Contact Finish Thickness :

Flash

Min Operating Temperature :

-55°C

ECCN Code :

EAR99

Mixed Contacts :

No

Filter Feature :

No

Max Operating Temperature :

85°C

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Thermoplastic

Current Rating :

500mA

Type :

SCSI+, VHDCI

Option :

GENERAL PURPOSE

Connector Type :

Receptacle

Number of Rows :

2

Contact Material :

NOT SPECIFIED

Pitch :

800μm

Empty Shell :

No

MIL Conformance :

No

Contact Finish :

Gold

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

DIN Conformance :

No

Max Voltage Rating (AC) :

30V

Housing Color :

Black

Length :

42.7mm
