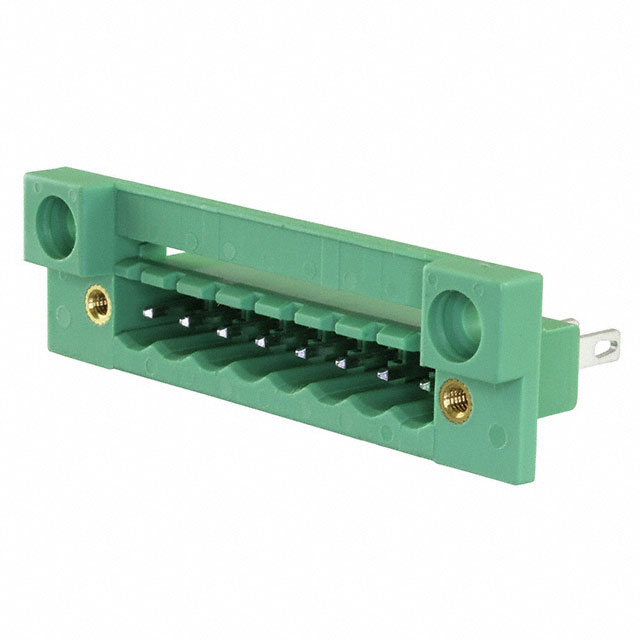

0710086

Manufacturer :

Phoenix Contact

Product Category :

Panel Mount

Wire Gauge (Max) :

12 AWG

RoHS Status :

RoHS Compliant

Number of Rows :

1

Depth :

29.5mm

Pbfree Code :

yes

Weight :

8.960009g

Length :

60mm

Number of Ways :

8

Pitch :

0.197 5.00mm

Number of Positions :

8

Mount :

Wall

Connector Type :

PLUG

Panel Thickness :

0.020 ~ 0.157 0.5 ~ 4.0mm

Wire Gauge (Min) :

24 AWG

Current Rating :

12A

Front Panel Wire Connection :

Header, Male Pins

Width :

2.362 60.00mm

Series :

COMBICON DFK-MSTB

Number of Decks :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Panel Mount Type :

Screw Mount - Front Flange

Safety Approval :

UL; CSA

Voltage :

300V

Termination :

Solder

Factory Lead Time :

4 Weeks

Voltage - Rated :

320V

ECCN Code :

EAR99

Flammability Rating :

UL94 V-2

Number of Levels :

1

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Rear Panel Wire Connection :

Quick Connect - 0.187 (4.75mm), Solder Eyelet

Current :

15A

Contact Material :

Tin

Housing Material :

Polyamide

Orientation :

Straight

Color :

Green

Wire Cross Section :

2.5 mm2

Reach Compliance Code :

Unknown

Max Current Rating :

12A

Height :

27.2mm
