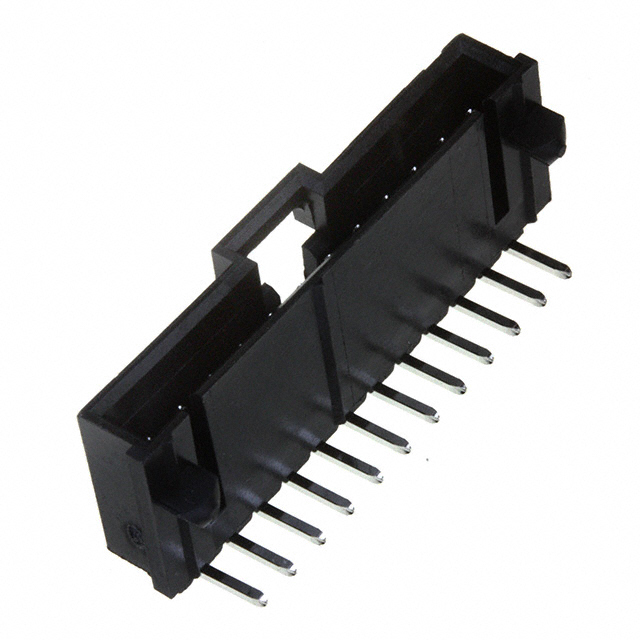

0705550011
Or copy the link below:
- Mfr.Part #
- 0705550011
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 12POS 2.54MM
- Stock
- 84
- In Stock ：
- 84
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.240 6.10mm
- Connector Type :
- Header
- Feature :
- Board Guide
- Factory Lead Time :
- 8 Weeks
- Fastening Type :
- Latch Holder
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Insulation Height :
- 0.215 5.45mm
- Contact Length - Post :
- 0.130 3.30mm
- Number of Positions :
- 12
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Polyester, Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Packaging :
- Tube
- Number of Rows :
- 1
- Contact Finish - Mating :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Shrouding :
- Shrouded - 4 Wall
- Voltage - Rated :
- 250V
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Series :
- SL 70555
- Contact Material :
- Phosphor Bronze
- Contact Type :
- Male Pin
- Insulation Color :
- Black
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 0705550011
SL 70555 Series 1-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Tin Polyester, Glass Filled 12-Position Board to Cable/Wire 0.215 5.45mm Height
0705550011 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tube case is used.It belongs to the SL 70555 Series of products.Automotive, General Purpose, Industrial, Medical is a possible application for the device.Its Board Guide feature renders it more powerful in many ways.The device runs in -40°C~105°C Operating Temperature.
0705550011 Features
SL 70555 series
0705550011 Applications
There are a lot of Molex
0705550011 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
