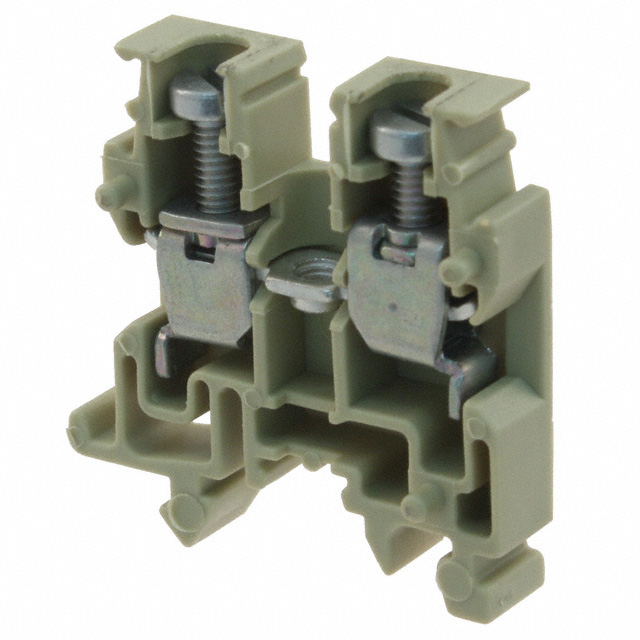

0697160000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Height :

26.3mm

Width :

5.1mm

Termination Style :

Screw

Wire Gauge (Min) :

12 AWG

ECCN Code :

EAR99

Mount :

CABLE

Min Operating Temperature :

-50°C

Flammability Rating :

UL94 V-2

Current - UL :

10A

Voltage - IEC :

250V

Number of Levels :

1

Housing Material :

Nylon

Length :

25.5mm

Series :

SAK

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge or Range - AWG :

12-26 AWG

Wire Gauge (Max) :

26 AWG

Type :

Feed Through

Weight :

3.75g

Voltage - Rated :

4kV

Color :

Beige

Safety Approval :

CSA

Max Current Rating :

10A

Lead Free :

Lead Free

Current :

21A

Number of Ways :

2

Approval Agency :

CE, CSA, IEC, UR

Stripping Length :

7mm

Radiation Hardening :

No

Material Flammability Rating :

UL94 V-2

Max Operating Temperature :

100°C

Number of Decks :

1

HTS Code :

8536.69.40.40

Number of Rows :

2

Voltage :

300V

Current Rating :

24A

Orientation :

Straight

Factory Lead Time :

12 Weeks

Wire Gauge or Range - mm² :

0.5-4mm2

RoHS Status :

RoHS Compliant
