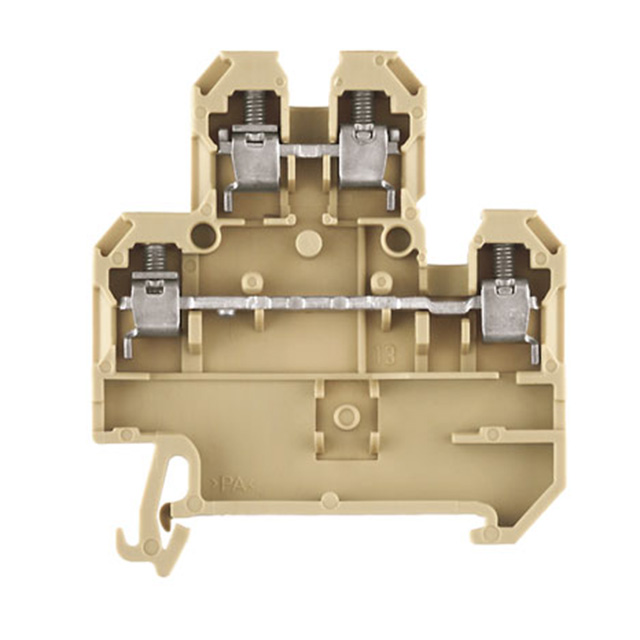

0590160000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Approval Agency :

CE, CSA, IEC, UR

Max Operating Temperature :

100°C

Color :

Beige

Type :

Feed Through

Flammability Rating :

UL94 V-2

Depth :

6mm

Voltage - Rated :

6kV

Termination Style :

Screw

Series :

SAK

Wire Gauge (Max) :

26 AWG

Number of Rows :

4

Radiation Hardening :

No

Height :

60.5mm

Stripping Length :

8mm

Voltage :

300V

Moisture Sensitivity Level (MSL) :

Not Applicable

Material :

Nylon

ECCN Code :

EAR99

Lead Free :

Lead Free

Material Flammability Rating :

UL94 V-2

Width :

6mm

Number of Levels :

2

Current Rating :

32A

Terminal Width :

6.0mm

Current :

27A

Wire Gauge (Min) :

12 AWG

Length :

50mm

Housing Material :

Polyamide

Number of Decks :

2

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Min Operating Temperature :

-50°C

Voltage - IEC :

500V

RoHS Status :

RoHS Compliant

Safety Approval :

UL; CSA; CE

Mount :

CABLE

Wire Gauge or Range - mm² :

0.5-4mm2

Wire Gauge or Range - AWG :

12-26 AWG

Orientation :

Straight

Max Current Rating :

32A

Factory Lead Time :

8 Weeks
