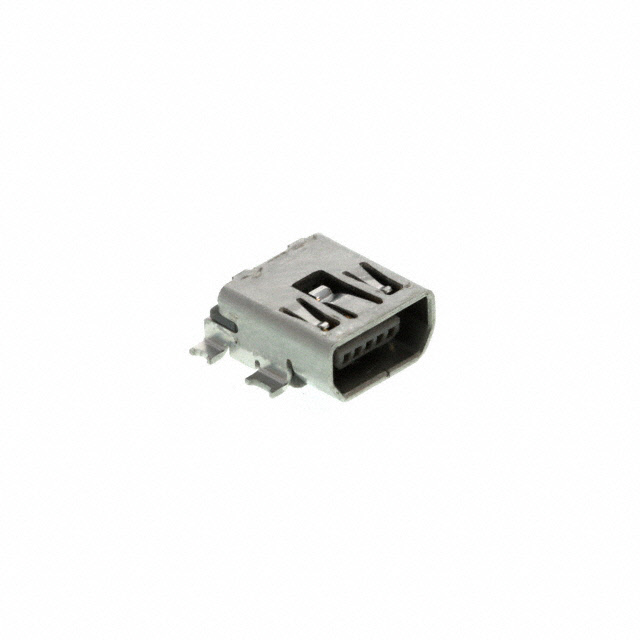

0565790576
Or copy the link below:
- Mfr.Part #
- 0565790576
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT USB2.0 MINI AB SMD R/A
- Stock
- 6,414
- In Stock ：
- 6,414
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Current Rating (Amps) :
- 1A
- Insulation Color :
- Gray
- Mounting Type :
- Surface Mount, Right Angle
- Packaging :
- Tape and Reel (TR)
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e4
- Series :
- 56579
- Shielding :
- Shielded
- Shell/Shielding Material :
- COPPER ALLOY
- Contact Finish :
- Gold
- Shell Material :
- POLYETHYLENE
- IEC Conformance :
- No
- Gender :
- Receptacle
- Mounting Feature :
- Horizontal
- Connector Type :
- USB - mini AB
- Operating Temperature :
- -20°C~85°C
- Number of Contacts :
- 5
- Material Flammability Rating :
- UL94 V-0
- Number of Ports :
- 1
- Contact Material :
- NOT SPECIFIED
- MIL Conformance :
- No
- Empty Shell :
- No
- Option :
- GENERAL PURPOSE
- Voltage - Rated :
- 30VAC/DC
- Factory Lead Time :
- 16 Weeks
- RoHS Status :
- ROHS3 Compliant
- Mixed Contacts :
- No
- Feature :
- Solder Retention
- Termination :
- Solder
- Filter Feature :
- No
- DIN Conformance :
- No
- Specifications :
- USB 2.0 OTG
- Datasheets
- 0565790576
0565790576 datasheet pdf and USB, DVI, HDMI Connectors product details from Molex stock available at Xinshop
