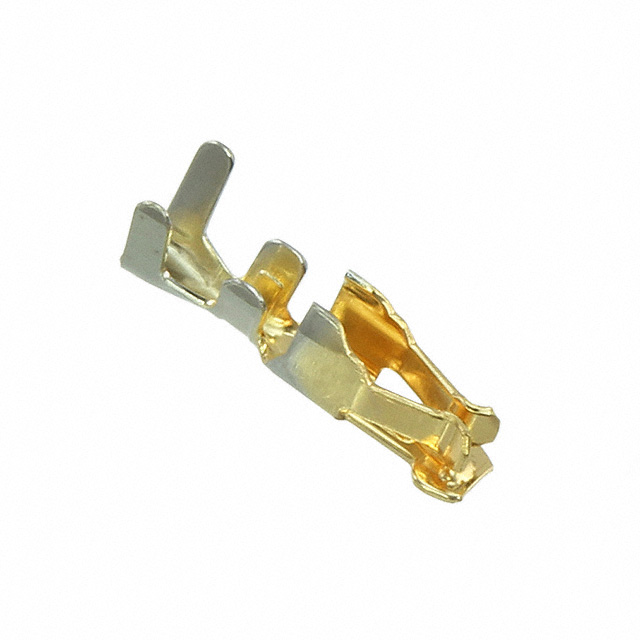

0503948200
Or copy the link below:
- Mfr.Part #
- 0503948200
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 24-30AWG CRIMP GOLD
- Stock
- 101,956
- In Stock ：
- 101,956
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Rectangular Connector Contacts
- Assembly Item Name :
- Contact
- Mounting Style :
- Straight
- Length - Termination :
- 0.093 inch
- Contact Design :
- LOOSE
- MIL Conformance :
- No
- Series :
- Milli-Grid 50394
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Support Type :
- CONNECTOR ACCESSORY
- DIN Conformance :
- No
- Contact Gender :
- FEMALE
- Contact Style :
- BELLOWED CONTACT
- Pin or Socket :
- Socket
- HTS Code :
- 8536.90.40.00
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Factory Lead Time :
- 14 Weeks
- Contact Finish :
- Gold
- Pbfree Code :
- yes
- IEC Conformance :
- No
- Contact Termination :
- Crimp
- Used With :
- 51110 AND 151100
- RoHS Status :
- ROHS3 Compliant
- Wire Gauge :
- 24-30 AWG
- ECCN Code :
- EAR99
- Datasheets
- 0503948200
0503948200 datasheet pdf and Rectangular Connectors - Contacts product details from Molex stock available at Xinshop
