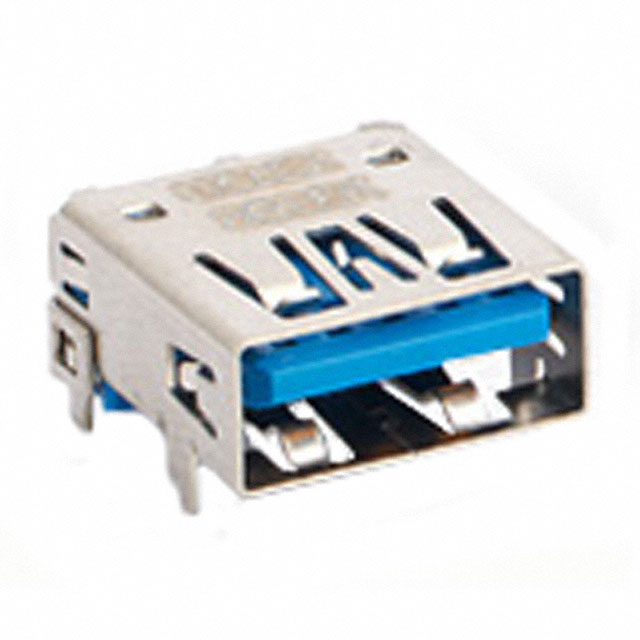

0483930003

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Shielding :

Shielded

Reference Standard :

UL

DIN Conformance :

No

Body Length or Diameter :

0.543 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder

Board Mounting Option :

Mounting Flange

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Body Breadth :

0.27 inch

Gender :

Receptacle

Contact Material :

NOT SPECIFIED

Contact Finish :

Gold

IEC Conformance :

No

Series :

48393

Mixed Contacts :

No

Current Rating (Amps) :

0.25A 1.8A

Number of Conductors :

ONE

Terminal Pitch :

2mm

Packaging :

Tape and Reel (TR)

Empty Shell :

No

Number of Ports :

1

Specifications :

USB 3.0 (USB 3.1 Gen 1, Superspeed)

Material Flammability Rating :

UL94 V-0

Shell Finish :

Nickel

Operating Temperature :

-20°C~85°C

Number of Contacts :

9

Number Of PCB Rows :

2

PCB Contact Pattern :

STAGGERED

Shell/Shielding Material :

Steel, Stainless

Filter Feature :

No

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

19 Weeks

Connector Type :

USB-A (USB TYPE-A)

Mounting Feature :

Horizontal

Shell Material :

Stainless Steel

Insulation Material :

Thermoplastic

Polarization Key :

POLARIZED HOUSING

Insulation Color :

Blue

Contact Pattern :

STAGGERED

Option :

GENERAL PURPOSE

Mating Cycles :

5000

MIL Conformance :

No

Voltage - Rated :

30VAC/DC

Mounting Option 2 :

LOCKING

JESD-609 Code :

e4

Pbfree Code :

yes
