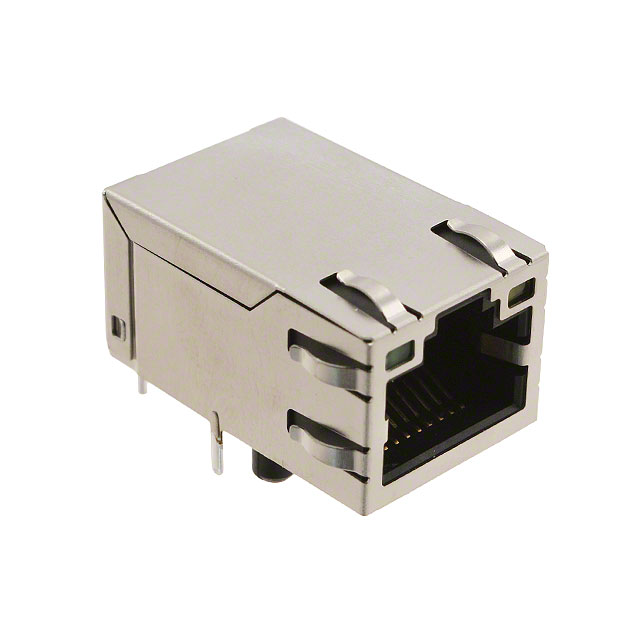

0480250091

Manufacturer :

Molex

Product Category :

Modular Connector Jacks With Magnetics

Number of Ports :

1

Tab Direction :

UP

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Contact Finish Thickness :

50.0μin 1.27μm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Orientation :

90° Angle (Right)

Feature :

Board Guide

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Contact Finish :

Gold

JESD-609 Code :

e3

Series :

48025

Empty Shell :

No

DIN Conformance :

No

Total Number of Contacts :

8

Packaging :

Tray

Number of Cores per Jack :

5

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Height Above Board :

0.524 13.31mm

Connector Type :

RJ45

Contact Gender :

FEMALE

Contact Material :

Phosphor Bronze

Factory Lead Time :

22 Weeks

Termination :

Solder

Mixed Contacts :

No

Operating Temperature :

-40°C~70°C

Shielding :

Shielded, EMI Finger

Additional Feature :

POLARIZED

LED Color :

Green - Yellow

Shield Material :

Brass

Applications :

10/100 Base-T

Pbfree Code :

yes

Option :

GENERAL PURPOSE

MIL Conformance :

No

IEC Conformance :

No

Body/Shell Style :

JACK
