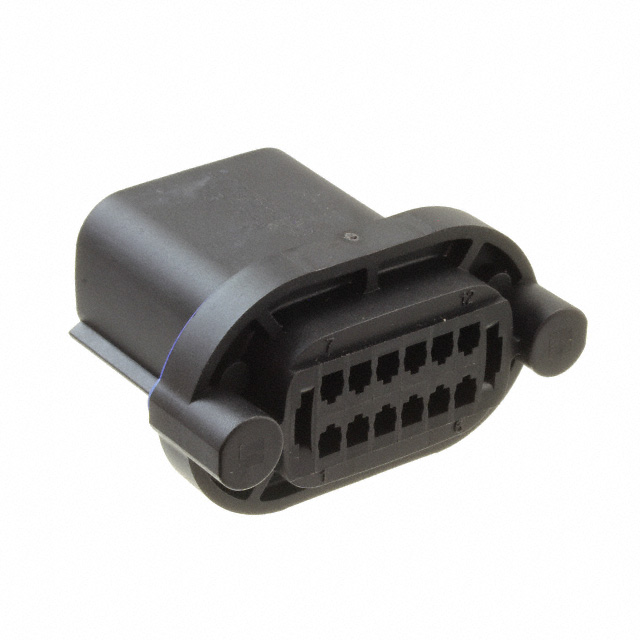

0477256010

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

RoHS Status :

ROHS3 Compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Panel Mount

Connector Type :

PLUG

Body Length or Diameter :

1.848 inch

Fastening Type :

Locking Ramp

Series :

MX150 47725

Contact Finish - Mating :

NOT SPECIFIED

Filter Feature :

No

Number of Rows :

2

Contact Type :

Male Pin

Color :

Black

Feature :

Terminal Position Lock (TPA)

Operating Temperature (Min) :

-40°C

UL Flammability Code :

94V-0

Total Number of Contacts :

12

Pbfree Code :

yes

Body Depth :

1.548 inch

Contact Termination :

Crimp

Mixed Contacts :

No

Factory Lead Time :

11 Weeks

Contact Material :

NOT SPECIFIED

Packaging :

Bulk

Note :

Contacts Not Included

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Reference Standard :

UL

Shell Material :

POLYBUTYLENE TEREPHTHALATE

Number of Positions :

12

Pitch :

0.138 3.50mm

Empty Shell :

No

Body Breadth :

1.066 inch
