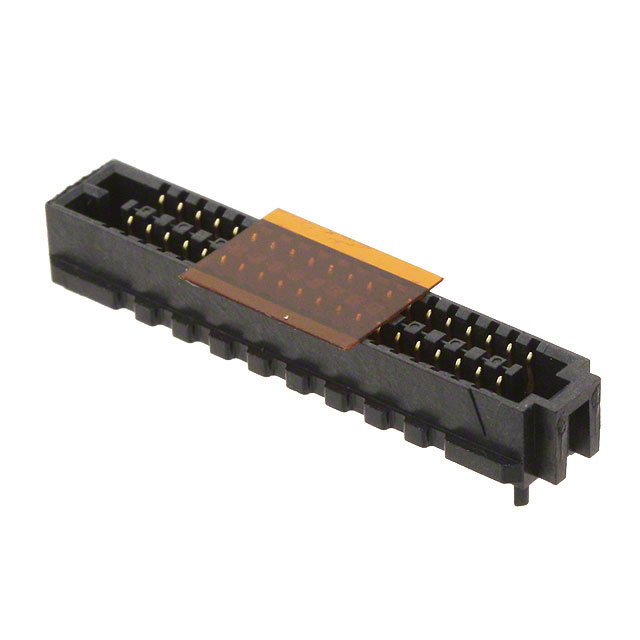

0465572145
Or copy the link below:
- Mfr.Part #
- 0465572145
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HD ARRAY RCPT 80P SMD GOLD
- Stock
- 1,980
- In Stock ：
- 1,980
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Number of Rows :
- 4
- Height Above Board :
- 0.199 5.05mm
- Voltage - Rated AC :
- 240V
- Series :
- SEARAY 46557
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- Max Operating Temperature :
- 125°C
- Housing Material :
- Polymer
- Pbfree Code :
- yes
- Length :
- 32.56mm
- Max Voltage Rating (AC) :
- 240V
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Board Guide
- Gender :
- Receptacle
- Termination :
- Solder
- Contact Material :
- NOT SPECIFIED
- Housing Color :
- Black
- Depth :
- 7.06mm
- Mount :
- Surface Mount
- Factory Lead Time :
- 7 Weeks
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 80
- Contact Resistance :
- 10MOhm
- Pitch :
- 0.050 1.27mm
- Number of Circuits :
- 40
- Mounting Type :
- Surface Mount
- Min Operating Temperature :
- -55°C
- Current Rating :
- 1A
- Stack Height (Mating) :
- 7mm 7.5mm 8mm 8.5mm 9.5mm 10mm 12mm
- Connector Type :
- High Density Array, Female
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- Datasheets
- 0465572145
High Density Array, Female Tape & Reel (TR) 4 Rows 0.050 1.27mm Surface Mount 80 Positions SEARAY 46557 Gold Solder NOT SPECIFIED
0465572145 Overview
Currently, it is packaged in High Density Array, Female.A Tape & Reel (TR) case is used to package the product.The mounting type of the device is Surface Mount.A product of the SEARAY 46557 Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Board Guide when it operates.Using a Surface Mount socket is required in order to mount the item.A temperature below 125°C is best for using it.The device must run at -55°C degrees.It is constructed with 40 circuits in order to achieve its superior flexibility.
0465572145 Features
SEARAY 46557 series
40 circuits
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
0465572145 Applications
There are a lot of Molex
0465572145 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
