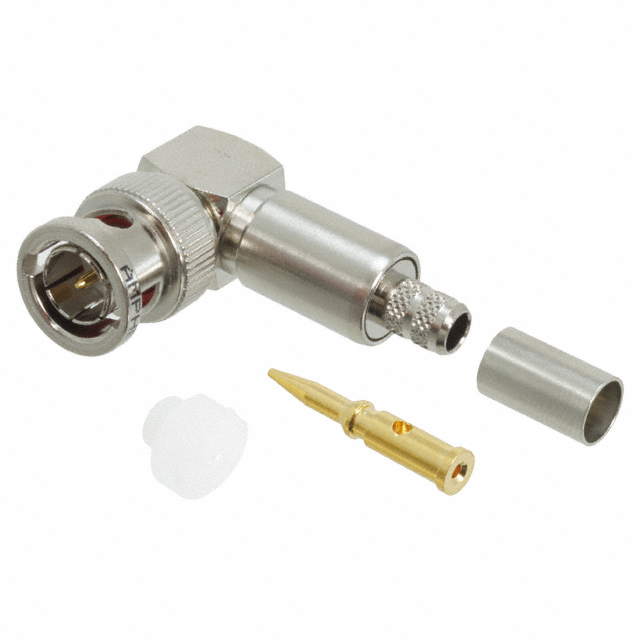

031-71010-RFX
Or copy the link below:
- Mfr.Part #
- 031-71010-RFX
- Manufacturer
- Amphenol RF
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC PLUG R/A 75 OHM CRIMP
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol RF
- Product Category :
- Coaxial Connector (RF) Assemblies
- Operating Temperature :
- -40°C~155°C
- Depth :
- 27.3mm
- Cable Group :
- RG-59 Plenum, Belden 1506, 82108, 9104
- Body Finish :
- Nickel
- Voltage - Rated :
- 500V
- Shield Termination :
- Crimp
- Frequency (Max) :
- 2GHz
- Contact Material :
- Brass
- Factory Lead Time :
- 9 Weeks
- Orientation :
- RIGHT ANGLE
- Number of Ports :
- 1
- RoHS Status :
- RoHS Compliant
- Body Plating :
- Nickel
- Connector Style :
- BNC
- Impedance :
- 75Ohm
- Mating Cycles :
- 500
- Resistance :
- 75Ohm
- Termination :
- Crimp
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Packaging :
- Bulk
- Max Operating Temperature :
- 155°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Silver
- Contact Termination :
- Crimp
- Mount :
- Cable, Free Hanging
- Dielectric Material :
- Polyoxymethylene (POM) Acetal
- Body Material :
- Brass
- Center Contact Material :
- Brass
- Contact Plating :
- Gold
- Frequency :
- 4GHz
- Fastening Type :
- Bayonet Lock
- Center Contact Plating :
- Gold
- Min Operating Temperature :
- -40°C
- Published :
- 2003
- Includes :
- 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
- Connector Type :
- Plug, Male Pin
- Insertion Loss :
- 0.2dB
- Datasheets
- 031-71010-RFX
Plug, Male Pin Bayonet Lock 75Ohm Bulk BNC Crimp 1 Port Polyoxymethylene (POM) Acetal -40°C~155°C
031-71010-RFX Overview
As a general rule, it is recommended to keep the device resistance within a range of 75Ohm.The packaging contains Plug, Male Pin.This device is mounted in the Free Hanging (In-Line), Right Angle position.It has been determined that a Bulk case is necessary to package the product.When the temperature is below 155°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device has 1 ports that can be used to manage a variety of tasks.Part Cable, Free Hanging is mounted to the part.As a result, the device runs at -40°C~155°C Operating Temperature.This device is extremely efficient when operated at a frequency of 4GHz.
031-71010-RFX Features
031-71010-RFX Applications
There are a lot of Amphenol RF
031-71010-RFX Coaxial Connectors applications.
