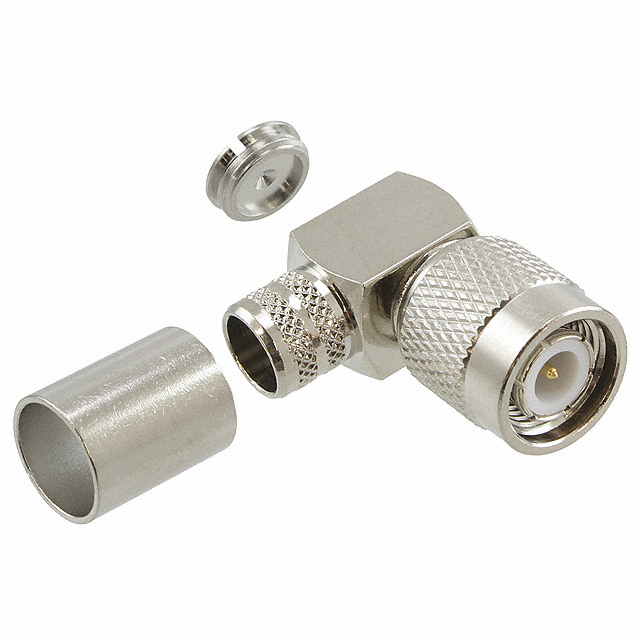

031-6002-RFX

Manufacturer :

Amphenol RF

Product Category :

Coaxial Connector (RF) Assemblies

Published :

2001

Contact Termination :

Solder

Center Contact Plating :

Gold

Mating Cycles :

500

MIL Conformance :

No

Packaging :

Bulk

Housing Color :

Silver

Insertion Loss :

0.18dB

Cable Group :

Belden 9913, 9914, LMR-400

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Impedance :

50Ohm

Orientation :

RIGHT ANGLE

Connector Type :

Plug, Male Pin

Connector Style :

TNC

Mounting Type :

Free Hanging (In-Line), Right Angle

Additional Feature :

INSERTION LOSS MAX AT: 9GHZ

Option :

GENERAL PURPOSE

Body Finish :

Nickel

Body Material :

Brass

Fastening Type :

Threaded

Insulation Material :

POLYTETRAFLUORO ETHYLENE

DIN Conformance :

No

Number of Ports :

1

Mount :

Cable, Free Hanging

JESD-609 Code :

e4

RoHS Status :

RoHS Compliant

Operating Temperature :

-45°C~85°C

Frequency :

11GHz

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Factory Lead Time :

9 Weeks

Radiation Hardening :

No

Includes :

3 pcs - 1 Connector, 1 End Cap, 1 Ferrule

Filter Feature :

No

Voltage - Rated :

500V

Shield Termination :

Crimp
