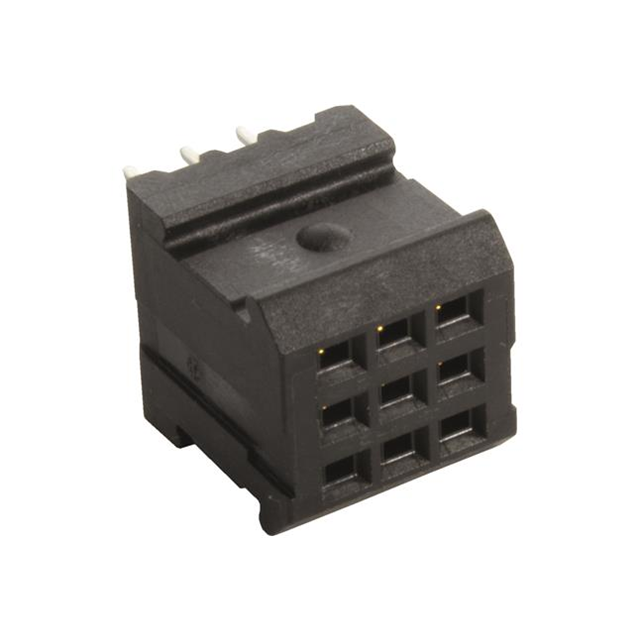

02529091101
Or copy the link below:
- Mfr.Part #
- 02529091101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- 9 POSITION 2A STRAIGHT FEMALE
- Stock
- 11,247
- In Stock ：
- 11,247
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Height :
- 0.455 (11.56mm)
- Mounting Type :
- Through Hole
- Applications :
- -
- Voltage Rating :
- -
- Contact Finish Thickness - Mating :
- -
- Pitch - Mating :
- 0.100 (2.54mm)
- Number of Contacts :
- 9
- Termination :
- Solder
- Product Status :
- Active
- Contact Plating :
- Gold
- Accessory Type :
- -
- Contact Finish - Post :
- Tin
- Number of Rows :
- 3 Row
- Contact Material :
- COPPER ALLOY
- Number of Positions Loaded :
- All
- Fastening Type :
- Push-Pull
- Insulation Color :
- Black
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Length - Post :
- 0.177 (4.50mm)
- Connector Type :
- Receptacle
- Style :
- Board to Board or Cable
- Mated Stacking Heights :
- -
- Ingress Protection :
- -
- Body Orientation :
- Straight
- Series :
- Har-Modular
- Contact Finish Thickness - Post :
- -
- Termination Style :
- Solder Pin
- Product :
- Receptacles
- Contact Finish - Mating :
- Gold
- Pitch :
- 2.54 mm
- Contact Type :
- Female Socket
- Operating Temperature :
- -55°C ~ 125°C
- Package :
- Bulk
- Current Rating (Amps) :
- 2A
- Number of Positions :
- 9 Position
- Material Flammability Rating :
- UL94 V-0
- Features :
- -
- Contact Shape :
- RECTANGULAR
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Datasheets
- 02529091101
02529091101 Documents
Har-Modular Series Receptacle Solder 9 Position Positions Pitch: 2.54 mm -55°C ~ 125°C Through Hole
02529091101 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.Product number Har-Modular belongs to the Har-Modular Series.This device operates at a temperature of -55°C ~ 125°C.
02529091101 Features
Har-Modular series
02529091101 Applications
There are a lot of HARTING
02529091101 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
