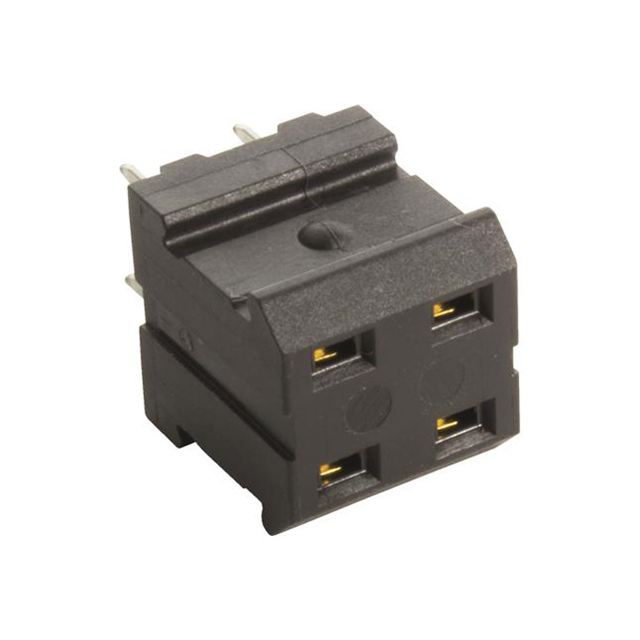

02529041201
Or copy the link below:
- Mfr.Part #
- 02529041201
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- 4 POSITION 6A STRAIGHT FEMALE
- Stock
- 21
- In Stock ：
- 21
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Receptacles, Female Sockets
- Pitch - Mating :
- 0.200 (5.08mm)
- Series :
- Har-Modular
- Contact Finish - Post :
- Tin
- Contact Type :
- Female Socket
- Fastening Type :
- Push-Pull
- Mated Stacking Heights :
- -
- Contact Finish - Mating :
- Gold
- Voltage Rating :
- -
- Connector Type :
- Receptacle
- Product :
- Receptacles
- Operating Temperature :
- -55°C ~ 125°C
- Number of Rows :
- 2 Row
- Contact Finish Thickness - Mating :
- -
- Number of Positions :
- 4 Position
- Contact Finish Thickness - Post :
- -
- Applications :
- -
- Current Rating (Amps) :
- 6A
- Number of Contacts :
- 4
- Contact Plating :
- Gold
- Contact Material :
- COPPER ALLOY
- Insulation Material :
- Polyamide (PA), Nylon
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Contact Shape :
- RECTANGULAR
- Accessory Type :
- -
- Number of Positions Loaded :
- All
- Features :
- -
- Body Orientation :
- Straight
- Package :
- Bulk
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.455 (11.56mm)
- Termination :
- Solder
- Termination Style :
- Solder Pin
- Insulation Color :
- Black
- Ingress Protection :
- -
- Style :
- Board to Board or Cable
- Contact Length - Post :
- 0.177 (4.50mm)
- Pitch :
- 5.08 mm
- Product Status :
- Active
- Datasheets
- 02529041201
02529041201 Documents
Har-Modular Series Receptacle Solder 4 Position Positions Pitch: 5.08 mm -55°C ~ 125°C Through Hole
02529041201 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A product of the Har-Modular Series, it belongs to the range of products of that series.-55°C ~ 125°C Operating Temperature is the default operating temperature for the device.
02529041201 Features
Har-Modular series
02529041201 Applications
There are a lot of HARTING
02529041201 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
