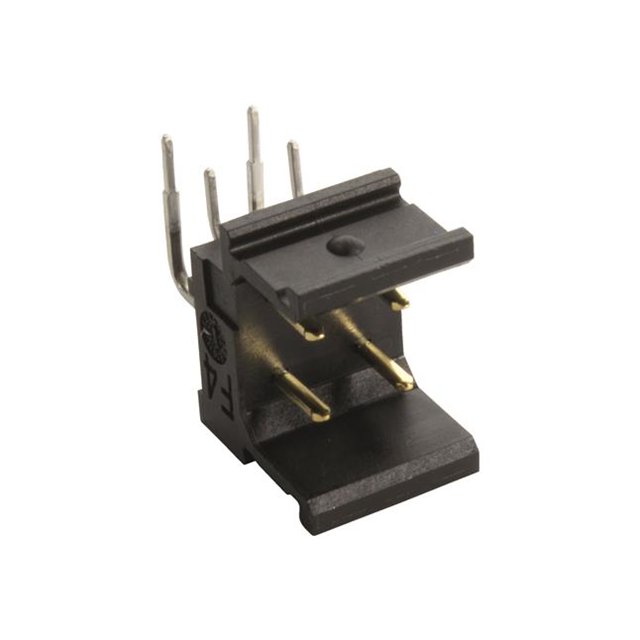

02519041201
Or copy the link below:
- Mfr.Part #
- 02519041201
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- 4 POSITION 6A ANGLED MALE
- Stock
- 198
- In Stock ：
- 198
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 6A
- Insulation Height :
- 0.579 (14.70mm)
- Contact Material :
- COPPER ALLOY
- Voltage Rating :
- -
- Body Orientation :
- Angled
- Contact Finish - Post :
- Tin
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 4 Position
- Contact Length - Post :
- 0.118 (3.00mm)
- Product Status :
- Active
- Pitch :
- 3 mm
- Style :
- Board to Cable/Wire
- Overall Contact Length :
- -
- Contact Plating :
- Gold
- Product :
- Headers
- Contact Length - Mating :
- -
- Pitch - Mating :
- 0.200 (5.08mm)
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Ingress Protection :
- -
- Applications :
- -
- Mounting Type :
- Through Hole, Right Angle
- Termination Style :
- Solder Pin
- Shrouding :
- Shrouded - 2 Wall
- Contact Finish Thickness - Mating :
- -
- Operating Temperature :
- -55°C ~ 125°C
- Contact Finish Thickness - Post :
- -
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Type :
- Male Pin
- Fastening Type :
- Push-Pull
- Series :
- Har-Modular
- Number of Positions Loaded :
- All
- Mated Stacking Heights :
- -
- Features :
- -
- Connector Type :
- Header
- Number of Contacts :
- 4
- Insulation Color :
- Black
- Package :
- Bulk
- Termination :
- Solder
- Contact Shape :
- Square
- Accessory Type :
- -
- Number of Rows :
- 2 Row
- Datasheets
- 02519041201
02519041201 Documents
Har-Modular Series Header Solder 4 Position Positions Pitch: 3 mm -55°C ~ 125°C Through Hole, Right Angle
02519041201 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.It belongs to the Har-Modular Series of products.The device runs in -55°C ~ 125°C Operating Temperature.
02519041201 Features
Har-Modular series
02519041201 Applications
There are a lot of HARTING
02519041201 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
