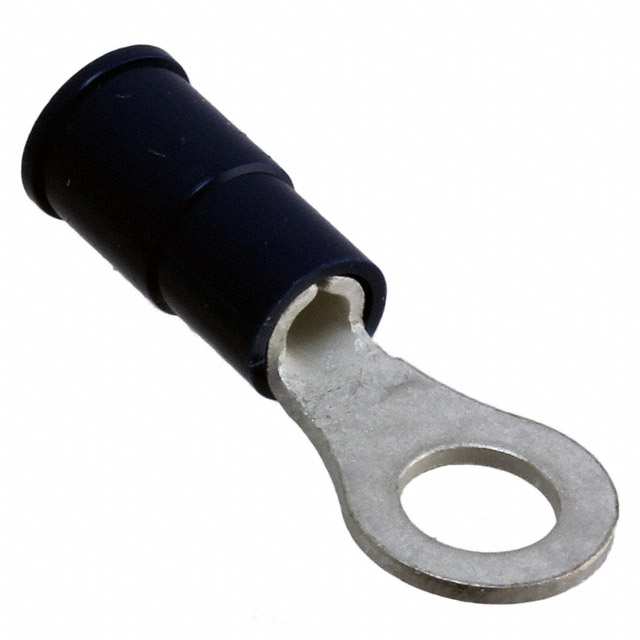

0190540119
Or copy the link below:
- Mfr.Part #
- 0190540119
- Manufacturer
- Molex
- Package / Case
- 200
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #10
- Stock
- 59,982
- In Stock ：
- 59,982
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Ring Connectors
- Length :
- 24.66mm
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Crimp
- Insulation :
- Insulated
- Wire Gauge (Max) :
- 14 AWG
- Mount :
- Stud
- Pbfree Code :
- yes
- Terminal Type :
- Circular
- Series :
- InsulKrimp
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Copper
- Packaging :
- Bulk
- Orientation :
- Straight
- Terminal and Terminal Block Type :
- RING TERMINAL
- Package / Case :
- 200
- Contact Finish :
- Electro-Tin
- Body Plating :
- Tin
- Wire/Cable Gauge :
- 14 AWG
- Factory Lead Time :
- 3 Weeks
- Wire Gauge :
- 14-16 AWG
- Width - Outer Edges :
- 0.342 8.69mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Diameter :
- 0.175 (4.45mm)
- Color :
- Blue
- Depth :
- 8.69mm
- Wire Gauge (Min) :
- 16 AWG
- Length - Overall :
- 0.971 24.66mm
- Thickness :
- 0.031 0.79mm
- Stud/Tab Size :
- 10 Stud
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Datasheets
- 0190540119
0190540119 datasheet pdf and Terminals - Ring Connectors product details from Molex stock available at Xinshop
