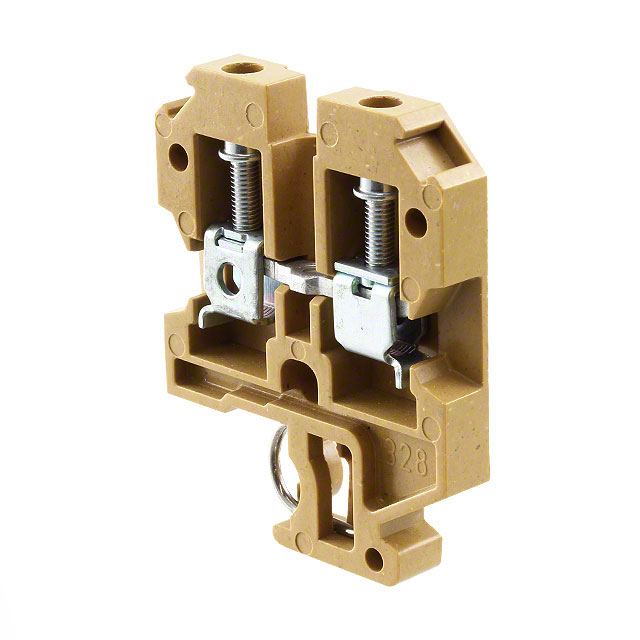

0128320000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Wire Gauge or Range - mm² :

0.5-6mm2

Number of Rows :

2

Color :

Yellow

Current - UL :

30A

RoHS Status :

RoHS Compliant

Current :

28A

Current Rating :

32A

HTS Code :

8536.69.40.40

Wire Gauge or Range - AWG :

10-26 AWG

Lead Free :

Lead Free

Wire Gauge (Max) :

26 AWG

Number of Ways :

2

Flammability Rating :

UL94 5VA

Type :

Feed Through

Number of Levels :

1

Termination Style :

Screw

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Safety Approval :

UL; CSA; CE

Housing Color :

Beige

Approval Agency :

CE, CSA, IEC, UR

Voltage - Rated :

8kV

Voltage - IEC :

800V

ECCN Code :

EAR99

Voltage - UL :

600V

Pbfree Code :

yes

Material Flammability Rating :

UL94 5VA

Max Current Rating :

30A

Wire Gauge (Min) :

10 AWG

Material - Insulation :

Gemin (Thermosetting Plastic)

Min Operating Temperature :

-60°C

Voltage :

600V

Length :

40mm

Housing Material :

Plastic

Height :

51.5mm

Additional Feature :

Polyamide

Max Operating Temperature :

130°C

Mount :

CABLE

Width :

6.5mm

Weight :

14.02g

Number of Decks :

1

Factory Lead Time :

6 Weeks

Series :

SAK

Stripping Length :

12mm
