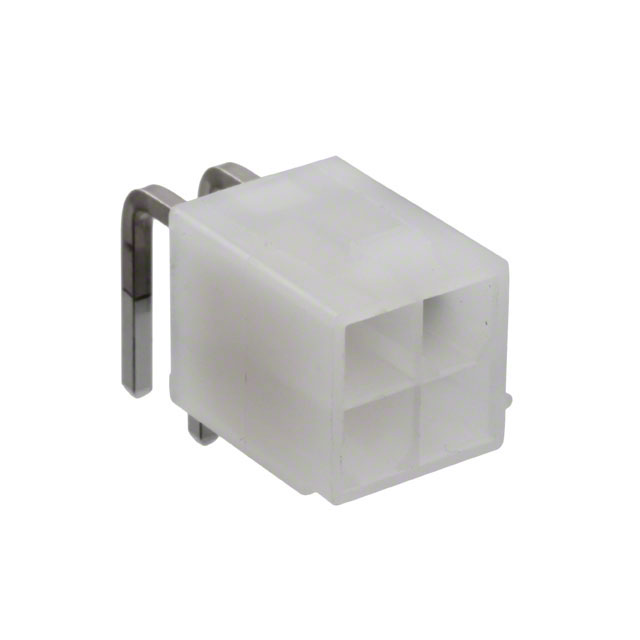

0039301041
Or copy the link below:
- Mfr.Part #
- 0039301041
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 4.2MM
- Stock
- 5,170
- In Stock ：
- 5,170
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Contact Finish - Post :
- Tin
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-2
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- Feature :
- Board Lock
- Number of Rows :
- 2
- Pitch - Mating :
- 0.165 4.20mm
- Factory Lead Time :
- 5 Weeks
- Additional Feature :
- POLARIZED
- Empty Shell :
- No
- JESD-609 Code :
- e3
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Termination :
- Solder
- Pbfree Code :
- yes
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Type :
- Male Pin
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Height :
- 0.378 9.60mm
- Contact Length - Post :
- 0.142 3.60mm
- Number of Positions :
- 4
- Contact Material :
- Brass
- Mounting Type :
- Through Hole, Right Angle
- DIN Conformance :
- No
- Fastening Type :
- Locking Ramp
- Series :
- Mini-Fit Jr 5569
- MIL Conformance :
- No
- Packaging :
- Bulk
- Insulation Color :
- Natural
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 0039301041
0039301041 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.378 9.60mm Height
0039301041 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the Mini-Fit Jr 5569 Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as POLARIZED, to name a few.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.A number of features make the Board Lock feature more powerful.
0039301041 Features
Mini-Fit Jr 5569 series
0039301041 Applications
There are a lot of Molex
0039301041 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
