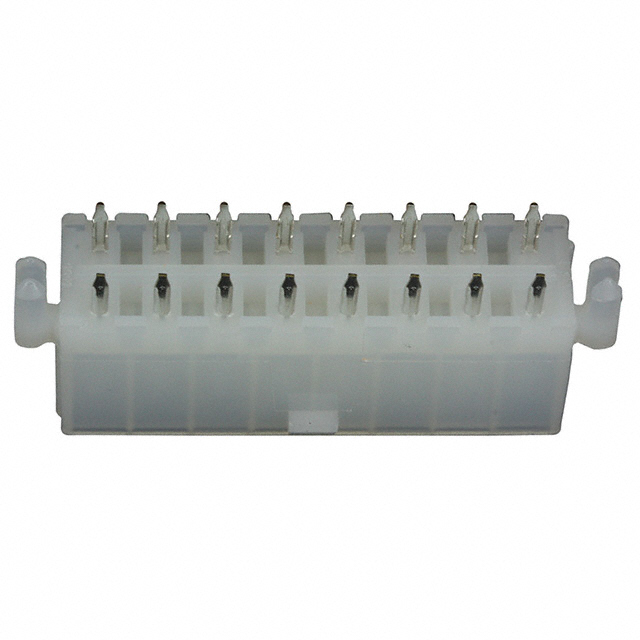

0039299163
Or copy the link below:
- Mfr.Part #
- 0039299163
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 4.2MM
- Stock
- 1,538
- In Stock ：
- 1,538
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Applications :
- General Purpose, Industrial, Telecommunications
- Feature :
- Board Lock
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Shrouding :
- Shrouded - 4 Wall
- Material Flammability Rating :
- UL94 V-2
- Contact Length - Post :
- 0.138 3.50mm
- Contact Material :
- Brass
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 5 Weeks
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- Pitch - Mating :
- 0.165 4.20mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Insulation Height :
- 0.504 12.80mm
- Number of Positions :
- 16
- Series :
- Mini-Fit Jr 5566
- Fastening Type :
- Locking Ramp
- Contact Type :
- Male Pin
- Packaging :
- Tray
- Contact Shape :
- Square
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Natural
- Datasheets
- 0039299163
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 16-Position Board to Cable/Wire 0.504 12.80mm Height
0039299163 Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Tray case.Among the products in the Mini-Fit Jr 5566 Series, it is one of the most popular.The device could be used for General Purpose, Industrial, Telecommunications.A number of benefits can be derived from the Board Lock feature of this application.
0039299163 Features
Mini-Fit Jr 5566 series
0039299163 Applications
There are a lot of Molex
0039299163 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
