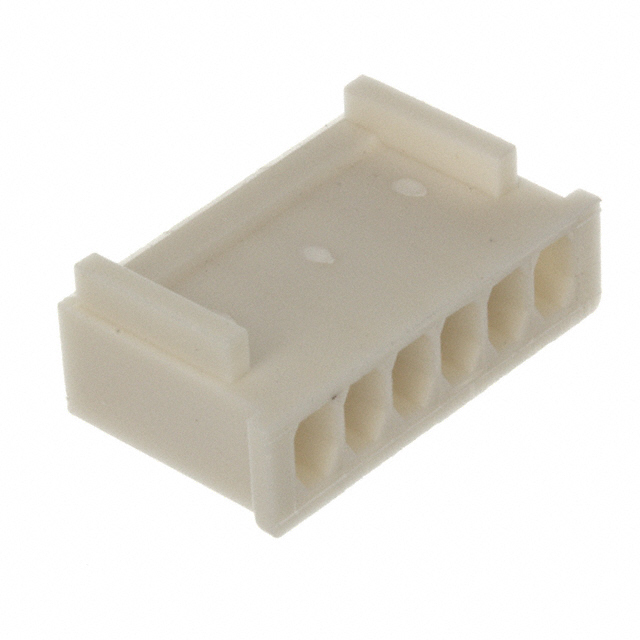

0022011064

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Max Operating Temperature :

105°C

Max Voltage Rating (DC) :

250V

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

IEC Conformance :

No

Color :

Natural

Option :

GENERAL PURPOSE

Additional Feature :

POLARIZED

DIN Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Wire Gauge (Min) :

22 AWG

Fastening Type :

Locking Ramp

Contact Finish - Mating :

NOT SPECIFIED

Connector Type :

Receptacle

Packaging :

Bulk

Housing Material :

Nylon

Depth :

10.7mm

Wire Gauge (Max) :

28 AWG

RoHS Status :

ROHS3 Compliant

Orientation :

Straight

UL Flammability Code :

94V-0

Series :

SPOX 5102

Contact Material :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.098 2.50mm

Contact Type :

Female Socket

Filter Feature :

No

Mixed Contacts :

No

Contact Termination :

Crimp

Note :

Contacts Not Included

Total Number of Contacts :

6

Lead Free :

Lead Free

Min Operating Temperature :

-40°C

Number of Rows :

1

MIL Conformance :

No

Max Voltage Rating (AC) :

250V

Number of Positions :

6

Length :

17.5mm
