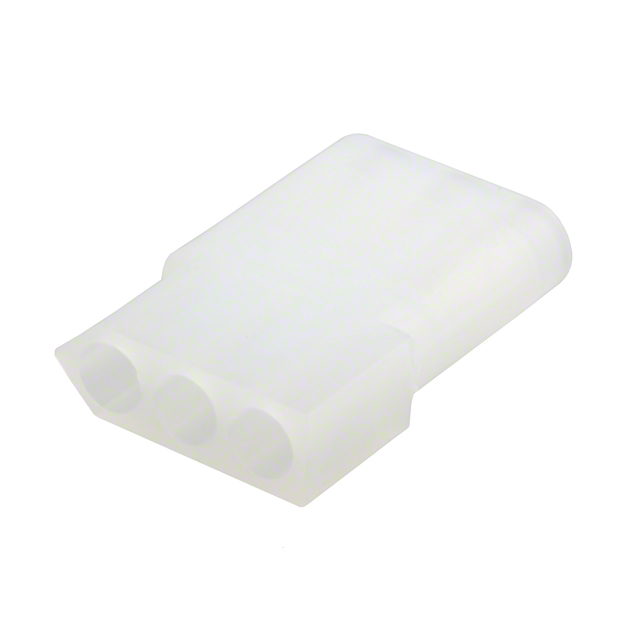

    Images are for reference only.

    Delivery：

    Payment：

    0003091033

    Share

    Or copy the link below:

    Mfr.Part #
    0003091033
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN RCPT HSG 3POS 5.03MM
    Stock
    3,314
    In Stock ：
    3,314

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Rectangular Connector Housings
    ECCN Code :
    EAR99
    Option :
    GENERAL PURPOSE
    Series :
    1396
    Shell Material :
    Polyamide
    Total Number of Contacts :
    3
    Filter Feature :
    No
    Mating Information :
    MULTIPLE MATING PARTS AVAILABLE
    IEC Conformance :
    No
    Mounting Type :
    Free Hanging (In-Line)
    MIL Conformance :
    No
    DIN Conformance :
    No
    Factory Lead Time :
    10 Weeks
    Contact Gender :
    Female and Male
    RoHS Status :
    ROHS3 Compliant
    Number of Rows :
    1
    Empty Shell :
    No
    Contact Material :
    NOT SPECIFIED
    Mixed Contacts :
    No
    Contact Finish - Mating :
    NOT SPECIFIED
    Contact Type :
    MALE OR FEMALE
    Contact Termination :
    Crimp
    Number of Positions :
    3
    Connector Type :
    Receptacle
    Note :
    Contacts Not Included
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Packaging :
    Bulk
    Color :
    Natural
    Pitch :
    0.198 5.03mm
    Pbfree Code :
    yes
    UL Flammability Code :
    94V-2
    Datasheets
    0003091033
    Introducing Rectangular Connector Housings Molex 0003091033 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), 0003091033 pinout, 0003091033 datasheet PDF, 0003091033 amp .Beyond Rectangular Connector Housings Molex 0003091033 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0003091033


    1 Rows Receptacle Bulk Natural 3 Positions Free Hanging (In-Line) Male or Female Crimp 1396

    0003091033 Overview


    The product is packaged in Receptacle.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 1396 Series.

    0003091033 Features


    1396 series


    0003091033 Applications


    There are a lot of Molex
    0003091033 Rectangular Connectors applications.


    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
    • Blowers
    • Control panels
    • Electrical substations
    • Energy efficient lighting (LED)
