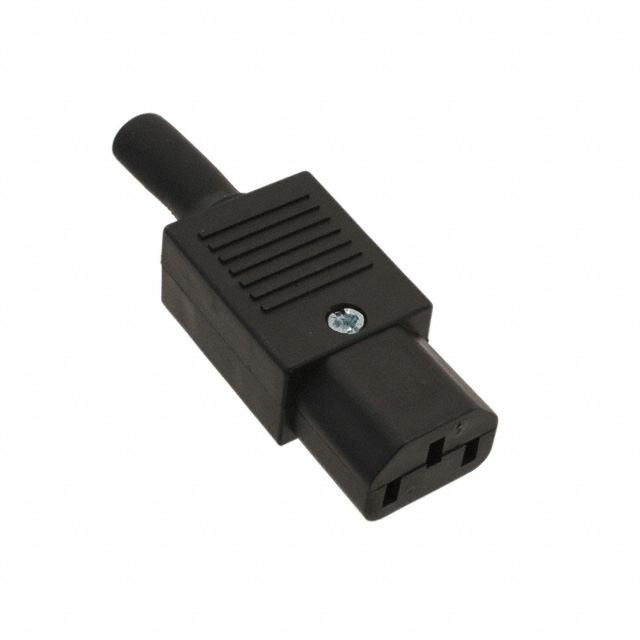

PX0587

Manufacturer :

Bulgin

Product Category :

Power Entry Modules (PEM)

Orientation :

Straight

Color :

Black

Height :

18.4mm

Voltage - Rated AC :

250V

Published :

2001

Series :

PX

Connector Style :

IEC 320-C13

Additional Feature :

UL 94V-0; CSA; VDE

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Filter Type :

Unfiltered - Commercial

Voltage - Rated DC :

250V

Total Number of Contacts :

3

Width :

26.4mm

Mounting Type :

Free Hanging (In-Line)

Packaging :

Bulk

Gender :

Receptacle

ECCN Code :

EAR99

Operating Temperature (Max) :

70°C

Current Rating :

10A

Length :

51.5mm

Accomodates a Fuse :

No

Material Flammability Rating :

UL94 V-0

Coupling Type :

Snap

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

24 Weeks

Housing Material :

Nylon

Connector Type :

Plug, Female Sockets

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Positions :

3

Approval Agency :

CSA, ENEC, RCM, UL, VDE

Contact Material :

Brass

Operating Temperature (Min) :

-40°C

Termination :

Screw

Voltage - IEC :

250VAC

Body Depth :

0.724 inch
