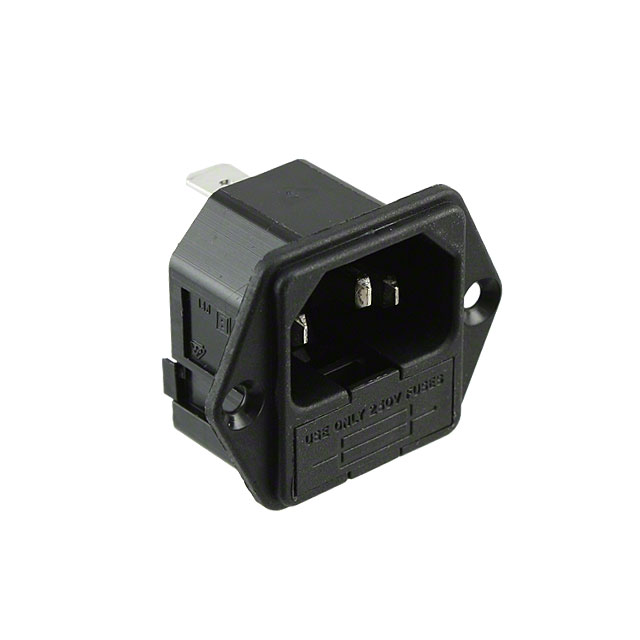

PF0001/63

Manufacturer :

Bulgin

Product Category :

Power Entry Modules (PEM)

Coupling Type :

Snap

Contact Material :

Brass

DIN Conformance :

No

Approval Agency :

CSA, ENEC, UL, VDE

Contact Plating :

Nickel

Voltage - Rated AC :

250V

Operating Temperature (Min) :

-40°C

MIL Conformance :

No

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

yes

Panel Cutout Dimensions :

Rectangular - 27.30mm x 31.12mm

Current Rating :

10A

Material Flammability Rating :

UL94 V-0

Number of Positions :

3

Color :

Black

Fuse Holder, Drawer :

Drawer Included

Termination :

Quick Connect - 0.250 (6.3mm)

Packaging :

Bulk

Filter Type :

Unfiltered - Commercial

Contact Finish - Mating :

Tin

Series :

PF

Total Number of Contacts :

3

Published :

2003

Connector Style :

IEC 320-C14

Shell Material :

Polyamide

Voltage - Rated DC :

250V

Accomodates a Fuse :

Yes (Fuse Not Included)

REACH SVHC :

No SVHC

Voltage - IEC :

250VAC

JESD-609 Code :

e3

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

24 Weeks

Operating Temperature (Max) :

70°C

Connector Type :

Receptacle, Male Blades - Module

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Panel Mount, Flange

Housing Material :

Nylon
