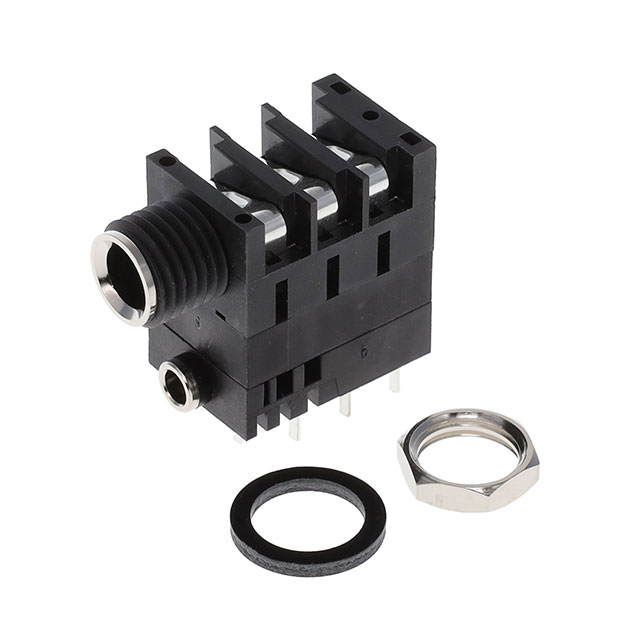

ACJS-MHD985
Or copy the link below:
- Mfr.Part #
- ACJS-MHD985
- Manufacturer
- Amphenol Audio
- Package / Case
- Datasheet
- Download
- Description
- DUAL 3.5MM/1/4" TRS HORZ PCB
- Stock
- 974
- In Stock ：
- 974
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Audio Connectors
- Color :
- Black
- Orientation :
- RIGHT ANGLE
- Number of Terminations :
- 12
- Flammability Rating :
- UL94 V-0
- Body Color :
- Black
- Internal Switch(s) :
- Three Switches
- Number of Positions/Contacts :
- 3 Conductors, 6 Contacts
- Connector Type :
- Phone Jack, Dual
- Mount :
- Through Hole
- Max Operating Temperature :
- 75°C
- Number of Positions :
- 2
- Gender :
- FEMALE
- Contact Material - Plating :
- Tin
- Number of Contacts :
- 3
- Shielding :
- Unshielded
- Number of Ports :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2011
- Operating Temperature :
- -25°C~70°C
- Series :
- AC
- Voltage - Rated :
- 34V
- Contact Plating :
- Copper, Tin
- RoHS Status :
- ROHS3 Compliant
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Termination :
- Kinked Pin, Solder
- Factory Lead Time :
- 12 Weeks
- Current Rating (Amps) :
- 10A
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone, 6.35mm (0.250, 1/4) - Headphone
- Feature :
- Mounting Hardware, Thread Lock
- Min Operating Temperature :
- -25°C
- Contact Material :
- Brass
- Length :
- 16mm
- Datasheets
- ACJS-MHD985
