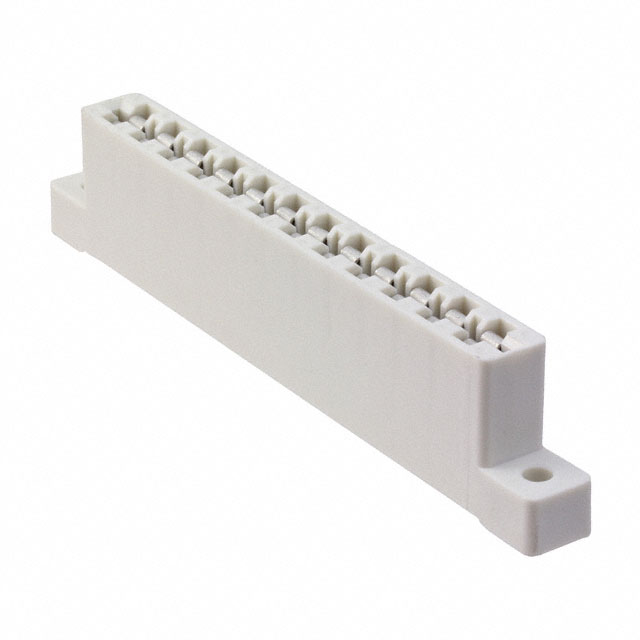

5-531353-9
Or copy the link below:
- Mfr.Part #
- 5-531353-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 24POS 0.312
- Stock
- 162
- In Stock ：
- 162
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Factory Lead Time :
- 10 Weeks
- Housing Color :
- White
- Mount :
- Cable, Panel
- Orientation :
- Straight
- Contact Material :
- COPPER ALLOY
- Option :
- GENERAL PURPOSE
- Termination :
- Solder
- Packaging :
- Bulk
- Card Type :
- Non Specified - Dual Edge
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Connector Type :
- CARD EDGE CONNECTOR
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2011
- Contact Finish :
- Tin
- Mixed Contacts :
- No
- Card Thickness :
- 0.062 1.57mm
- Mounting Type :
- Panel Mount
- Lead Free :
- Lead Free
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Number of Rows :
- 2
- ELV :
- Compliant
- UL Flammability Code :
- 94V-0
- Housing Material :
- Polyester
- Number of Contacts :
- 12
- Gender :
- FEMALE
- Color :
- Natural
- MIL Conformance :
- No
- Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Read Out :
- Single
- JESD-609 Code :
- e3
- Operating Temperature :
- -40°C~95°C
- Material - Insulation :
- Polyester, Glass Filled
- Pitch :
- 0.312 7.92mm
- IEC Conformance :
- No
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.156 (3.96mm) Dia
- Number of Positions :
- 24 (Power)
- Datasheets
- 5-531353-9
5-531353-9 Documents
Female Natural 0.312 7.92mm Copper Alloy 2 Rows Bulk Solder Tin 24 (Power) Positions Polyester, Glass Filled
5-531353-9 Overview
Material was packaged in accordance with Bulk's specifications.It's recommended to mount type Panel Mount.The device is connected via the connector socket CARD EDGE CONNECTOR.
5-531353-9 Features
5-531353-9 Applications
There are a lot of TE Connectivity AMP Connectors
5-531353-9 Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
