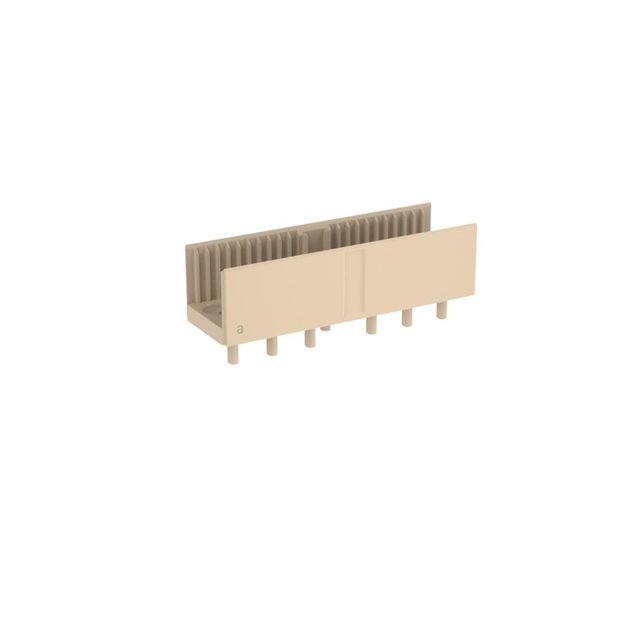

104146

Manufacturer :

TE Connectivity

Product Category :

Backplane Connector Housings

Reach Compliance Code :

Compliant

Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.295 inch

Withdrawl Force-Min :

.139 N

Mounting Type :

BOARD

Mounting Option 1 :

LOCKING

Contact Material :

COPPER ALLOY

Termination Method :

Press Fit

Durability :

250 Cycles

Total Number of Contacts :

6

Termination Type :

Press Fit

Product Length (mm) :

50(mm)

IEC Conformance :

No

Option :

GENERAL PURPOSE

Insulation Resistance :

10000000000 Ω

Gender :

M

Type :

Hard Metric

Housing Material :

Liquid Cryst Polymer

Current Rating (Max) :

0.9(A)

Contact Style :

RND PIN-SKT

HTS Code :

8536.69.40.30

Pitch (mm) :

7.5(mm)

Reliability :

COMMERCIAL

Contact Arrangement :

S0C6

Terminal Pitch :

7.5 mm

Mixed Contacts :

No

Body Depth :

0.53 inch

Operating Temp Range :

-55C to 125C

Contact Gender :

Male

DIN Conformance :

No

Mounting Style :

Through Hole

Number of Contact Rows :

1

Subcategory :

Headers and Edge Type Connectors

Contact Resistance :

20 mΩ

Number of Contacts :

6CAVITY(POS)

Product Depth (mm) :

15.4(mm)

UL Flammability Code :

94V-0

MIL Conformance :

No

Pbfree Code :

yes

Body Orientation :

Straight

Terminal Length :

0.197 inch

Manufacturer :

ERNI

Number Of PCB Rows :

2+1

Reference Standard :

UL

Body Breadth :

0.606 inch

Product Height (mm) :

13.45(mm)

Filter Feature :

No

ECCN Code :

EAR99

Connector Type :

BOARD CONNECTOR

Additional Feature :

COMPATIBLE CONTACTS: 013686; 594227, STANDARD: IEC 61076-4-101
