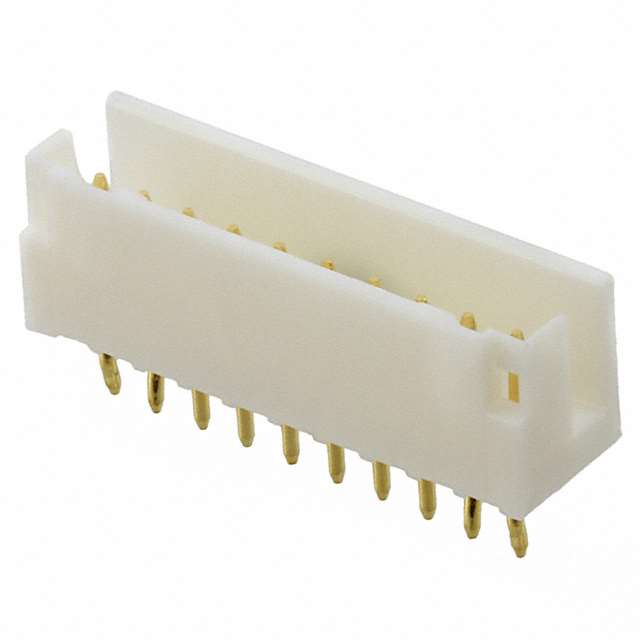

1-292134-0
Or copy the link below:
- Mfr.Part #
- 1-292134-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2MM
- Stock
- 32,091
- In Stock ：
- 32,091
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- MIL Conformance :
- No
- Depth :
- 5.8mm
- Contact Resistance :
- 20mOhm
- Width :
- 5.8mm
- Contact Length - Mating :
- 0.165 4.20mm
- Height :
- 6.7818mm
- IEC Conformance :
- No
- Connector Type :
- Header
- Series :
- CT
- Current Rating (Amps) :
- Varies by WireGAuge
- ECCN Code :
- EAR99
- Housing Material :
- Nylon
- Number of Positions :
- 10
- PCB Thickness :
- 800μm
- Contact Finish Thickness - Mating :
- 200 nm
- Housing Color :
- Natural
- Length - Tail :
- 3.2mm
- Body Breadth :
- 0.228 inch
- Contact Current Rating :
- 4A
- Contact Finish - Mating :
- Gold
- HTS Code :
- 8536.69.40.40
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Gender :
- Male
- Overall Contact Length :
- 0.358 9.09mm
- Orientation :
- Vertical
- UL Flammability Code :
- 94V-0
- Number of Positions Loaded :
- All
- Sealable :
- No
- Mating Contact Pitch :
- 0.079 inch
- Factory Lead Time :
- 12 Weeks
- Style :
- Board to Cable/Wire
- ELV :
- Compliant
- Contact Material :
- Brass
- Durability :
- 30 Cycles
- Fastening Type :
- Detent Lock
- Pitch - Mating :
- 0.079 2.00mm
- Voltage - Rated :
- 125VAC
- Mating Retention :
- Without
- Wire/Cable Gauge :
- 22 AWG
- Mixed Contacts :
- No
- Number of Conductors :
- ONE
- Contact Shape :
- Circular
- Insulator Color :
- Black
- Insulation Height :
- 0.268 6.80mm
- Termination :
- Kinked Pin, Solder
- Contact Type :
- Male Pin
- Pbfree Code :
- yes
- Contact Length - Post :
- 0.126 3.20mm
- Wire/Cable Type :
- Discrete
- Published :
- 2009
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- GENERAL PURPOSE
- PCB Mount Retention :
- With
- Mating Post Length :
- 4.2mm
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Reference Standard :
- UL
- Reliability :
- COMMERCIAL
- Number Of PCB Rows :
- 1
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Plating Thickness :
- 200 nm
- Operating Supply Voltage :
- 125V
- Current Rating :
- 4A
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- UL
- Min Operating Temperature :
- -40°C
- Max Voltage Rating (DC) :
- 125.125kV
- Mount :
- Through Hole
- Max Operating Temperature :
- 105°C
- Length :
- 21.80082mm
- Shape :
- RECTANGULAR
- Max Voltage Rating (AC) :
- 125V
- Polarization Key :
- POLARIZED HOUSING
- Material Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Datasheets
- 1-292134-0
CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Gold Polyamide (PA66), Nylon 6/6 10-Position Board to Cable/Wire 0.268 6.80mm Height
1-292134-0 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the CT Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.This device may be used for the purpose of General Purpose.Through Hole represents the mounting point for the part.You're going to need 125V to power this memory.
1-292134-0 Features
CT series
1-292134-0 Applications
There are a lot of TE Connectivity AMP Connectors
1-292134-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
