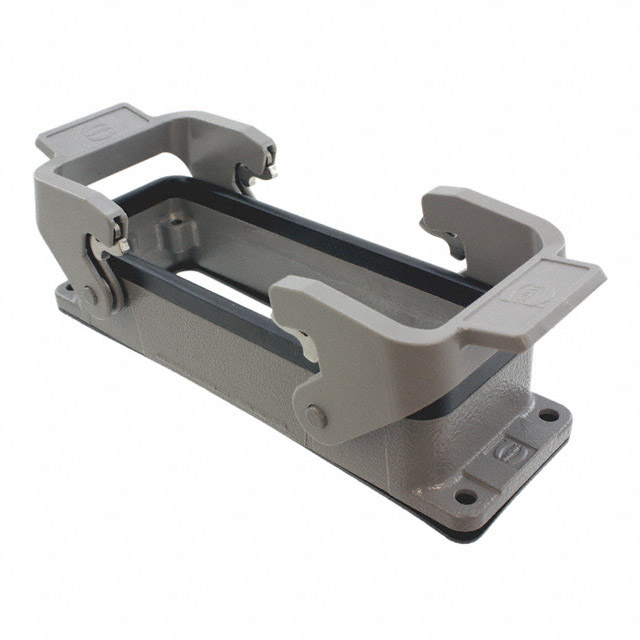

09300240301
Or copy the link below:
- Mfr.Part #
- 09300240301
- Manufacturer
- HARTING
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN BASE BOTTOM ENTRY SZ24B
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Housing Material :
- Aluminum, Die Cast
- Height :
- 28.5mm
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -40°C~125°C
- REACH SVHC :
- No SVHC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Size :
- 24b
- Lead Free :
- Lead Free
- IEC Conformance :
- No
- Color :
- Grey
- DIN Conformance :
- No
- Connector Support Type :
- CONNECTOR ACCESSORY
- Packaging :
- Bulk
- Connector Type :
- Base - Panel Mount
- Lock Location :
- Locking Clip (2) on Base Bottom
- Hole Diameter :
- 4.4 mm
- Body Material :
- Aluminium, Metal
- Ratings :
- Dust Tight, IP65, IP67, Water Resistant
- Factory Lead Time :
- 3 Weeks
- Orientation :
- Straight
- Series :
- Han® B
- Housing Color :
- Gray
- Gender :
- FEMALE
- Housing Finish :
- Powder Coated
- MIL Conformance :
- No
- Number of Positions :
- 8
- Depth :
- 57mm
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Package / Case :
- Metal
- Size / Dimension :
- 5.512Lx1.709W x 1.138 H 140.00mmx43.40mmx28.90mm
- Style :
- Bottom Entry
- Assembly Item Name :
- Housing
- Datasheets
- 09300240301
3 Weeks CONNECTOR ACCESSORY Bulk Han® B Base - Panel Mount Aluminum, Die Cast Bottom Entry Locking Clip (2) on Base Bottom -40°C~125°C Gray
09300240301 Overview
The product comes in a package of Base - Panel Mount.Packaging is performed using a Bulk case.It is part of the Han® B Series of products.A device is enclosed in the packaging with the Metal.There is no operating temperature for the device.
09300240301 Features
Han® B series
09300240301 Applications
There are a lot of HARTING
09300240301 Heavy Duty Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
