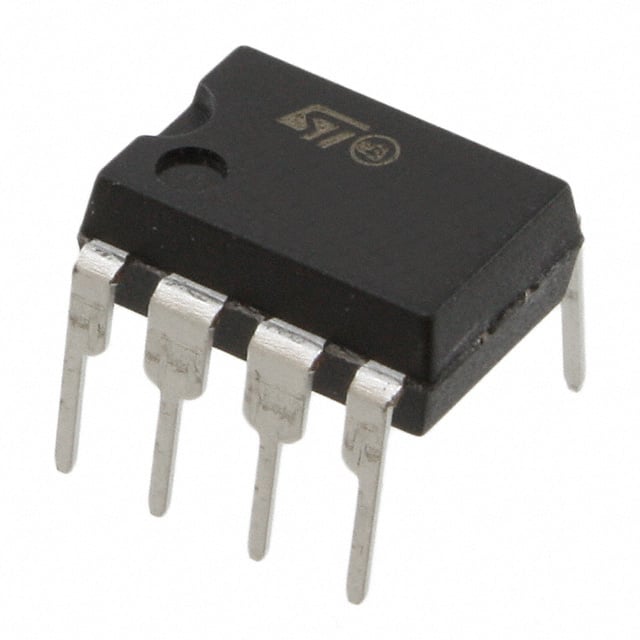

VIPER06HN
Or copy the link below:
- Mfr.Part #
- VIPER06HN
- Manufacturer
- STMicroelectronics
- Package / Case
- 8-DIP (0.300, 7.62mm), 7 Leads
- Datasheet
- Download
- Description
- IC OFFLINE SWITCH MULT TOP 7DIP
- Stock
- 1,538
- In Stock ：
- 1,538
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- AC DC Converters, Offline Switches
- Number of Channels :
- 1
- Terminal Position :
- Dual
- Output Isolation :
- Either
- Fault Protection :
- Current Limiting, Open Loop, Over Temperature
- Voltage - Start Up :
- 13V
- Max Power Dissipation :
- 8W
- Topology :
- Buck, Flyback
- Weight :
- 850.995985mg
- Mounting Type :
- Through Hole
- Control Technique :
- PULSE WIDTH MODULATION
- Max Supply Current :
- 20mA
- Max Duty Cycle :
- 80 %
- Base Part Number :
- VIPER06
- Terminal Pitch :
- 2.54mm
- Radiation Hardening :
- No
- RoHS Status :
- ROHS3 Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 6 months ago)
- Internal Switch(s) :
- yes
- Number of Functions :
- 1
- Operating Temperature :
- -40°C~150°C TJ
- Power Rating :
- 4W
- Output Voltage :
- 800V
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Input Voltage (Max) :
- 23.5V
- Voltage - Supply (Vcc/Vdd) :
- 11.5V~23.5V
- Duty Cycle :
- 70%
- Number of Terminations :
- 7
- Control Mode :
- CURRENT-MODE
- Packaging :
- Tube
- Analog IC - Other Type :
- SWITCHING REGULATOR
- Height Seated (Max) :
- 5.33mm
- Surface Mount :
- No
- Series :
- VIPer™ plus
- Output Power :
- 30mW
- Operating Supply Current :
- 1.6mA
- Input Voltage-Nom :
- 14V
- Number of Pins :
- 7
- Factory Lead Time :
- 12 Weeks
- Package / Case :
- 8-DIP (0.300, 7.62mm), 7 Leads
- Frequency - Switching :
- 115kHz
- Lead Free :
- Lead Free
- Datasheets
- VIPER06HN
AC DC Converters, Offline Switches STMicroelectronics VIPER06HN Overview
The STMicroelectronics VIPER06HN is a versatile integrated circuit specifically designed for AC DC converters and offline switching applications. This product, encapsulated in a 7-DIP package, offers a compact solution for high-efficiency power conversion in a variety of electronic devices. The VIPER06HN operates across a wide input voltage range, making it ideal for fluctuating power supplies while ensuring consistent performance and reliability. This IC incorporates multiple protection features, ensuring enhanced safety and extended product life. Its robust design caters to B2B clients looking for bulk purchasing options to incorporate into their high-volume, cost-effective manufacturing processes.
VIPER06HN Features
The VIPER06HN from STMicroelectronics includes several key features that make it a superior choice for power supply design. These features include integrated protections such as overload protection, thermal shutdown, and overvoltage protection which safeguard the device and the end application from potential damage. Additionally, the IC boasts high energy efficiency, a low standby power consumption, and the capability to handle a high-frequency operation which is critical for reducing noise and improving overall performance.
VIPER06HN Applications
- Consumer Electronics: Used in TVs, gaming consoles, and home appliances for stable power supply conversion.
- Lighting Solutions: Applied in LED lighting systems to ensure efficient power management and reliable operation.
- Industrial Automation: Powers automated machinery and control systems, enhancing operational efficiency and safety.
- Telecommunication Equipment: Provides consistent power in communication devices, supporting robust functionality even under variable load conditions.
