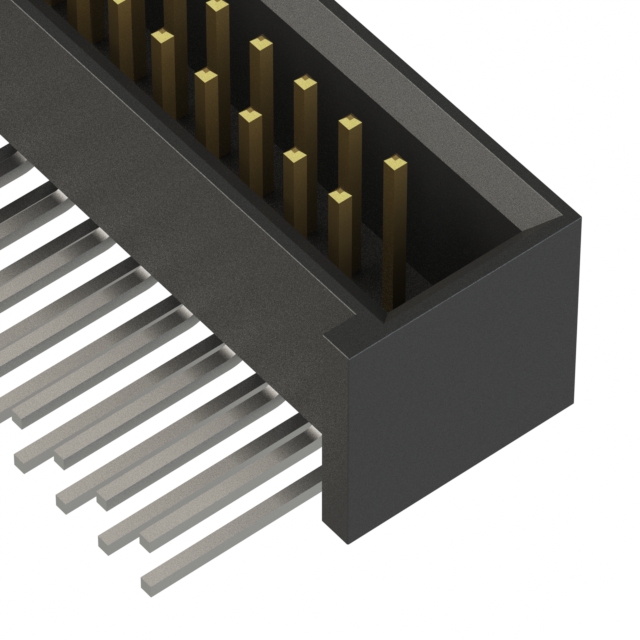

SHF-116-01-L-D-RA
Or copy the link below:
- Mfr.Part #
- SHF-116-01-L-D-RA
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 32POS 1.27MM
- Stock
- 31,847
- In Stock ：
- 31,847
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.120 3.05mm
- Mount :
- Through Hole
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Number of Positions :
- 32
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Termination :
- Solder
- Insulation Height :
- 0.220 5.60mm
- Series :
- SHF
- Shrouding :
- Shrouded - 4 Wall
- Operating Temperature :
- -55°C~125°C
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Gender :
- Male
- Packaging :
- Bulk
- Fastening Type :
- Push-Pull
- DIN Conformance :
- No
- Contact Shape :
- Square
- Pitch - Mating :
- 0.050 1.27mm
- Contact Length - Post :
- 0.085 2.16mm
- Mixed Contacts :
- No
- Style :
- Board to Cable/Wire
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 3 Weeks
- MIL Conformance :
- No
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Filter Feature :
- No
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Option :
- GENERAL PURPOSE
- Current Rating (Amps) :
- 3A
- Contact Material :
- Phosphor Bronze
- Number of Rows :
- 2
- Feature :
- Keying Slot
- Datasheets
- SHF-116-01-L-D-RA
SHF Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP) 32-Position Board to Cable/Wire 0.220 5.60mm Height
SHF-116-01-L-D-RA Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the SHF Series.It is more powerful in many ways due to its Keying Slot feature.It is mounted by Through Hole.It operates at an operating temperature of -55°C~125°C.
SHF-116-01-L-D-RA Features
SHF series
SHF-116-01-L-D-RA Applications
There are a lot of Samtec Inc.
SHF-116-01-L-D-RA Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
