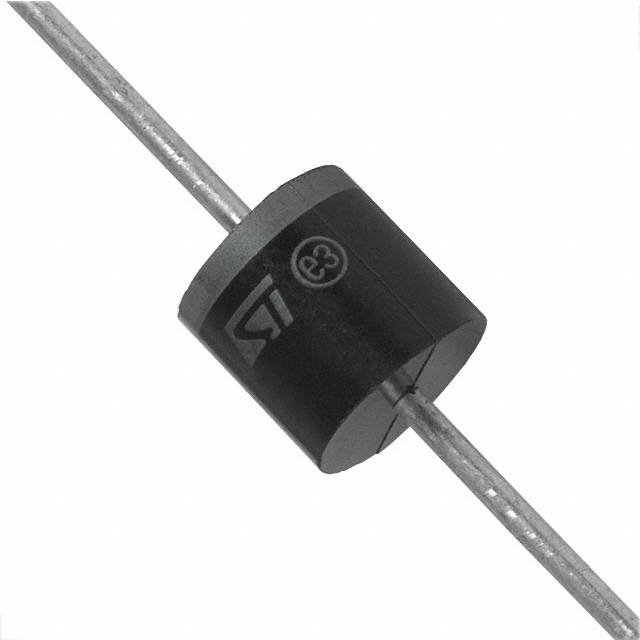

LDP24ARL

Manufacturer :

STMicroelectronics

Product Category :

Capacitance :

8nF

Lead Free :

Lead Free

Min Operating Temperature :

-65°C

Diode Element Material :

SILICON

Test Current :

1mA

Max Surge Current :

50μA

Current - Peak Pulse (10/1000μs) :

30A 8/20μs

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Base Part Number :

LDP24

Reverse Breakdown Voltage :

25V

Max Power Dissipation :

5W

Number of Pins :

6

Max Reverse Leakage Current :

50μA

Type :

Zener

RoHS Status :

ROHS3 Compliant

Breakdown Voltage :

25V

Number of Elements :

1

Reverse Standoff Voltage :

24V

Terminal Form :

Wire

Case Connection :

Isolated

Applications :

GENERAL PURPOSE

Peak Pulse Current :

30A

Leakage Current :

50μA

Mount :

Through Hole

Capacitance @ Frequency :

8000pF @ 1MHz

JESD-30 Code :

O-PALF-W2

Peak Pulse Power :

5W

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Operating Supply Voltage :

24V

Clamping Voltage :

40V

Working Voltage :

24V

Pin Count :

2

Factory Lead Time :

11 Weeks

Packaging :

Tape and Reel (TR)

Power Line Protection :

No

Terminal Finish :

Matte Tin (Sn) - annealed

Max Operating Temperature :

175°C

Number of Terminations :

2

JESD-609 Code :

e3

ECCN Code :

EAR99

Series :

LDP

Package / Case :

R6, Axial

Element Configuration :

Single

Polarity :

Unidirectional
