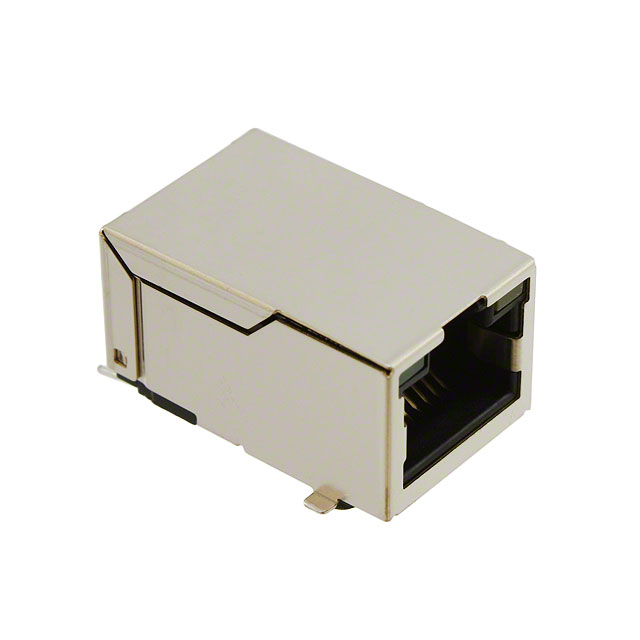

J3026G01DNLT
- Mfr.Part #
- J3026G01DNLT
- Manufacturer
- Pulse Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK 1PORT 100 BASE-TX SMD
- Stock
- 60
- In Stock :
- 60
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Pulse Electronics
- Product Category :
- Modular Connector Jacks With Magnetics
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- LED Color :
- Green - Yellow
- Mounting Style :
- Surface Mount
- USOC Codes :
- RJ45
- Family :
- J3
- Product Status :
- Active
- Height Above Board :
- 0.536 13.61mm
- Features :
- Board Guide
- DIN Conformance :
- No
- RoHS :
- Details
- Number of Positions :
- 8
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- UL Flammability Code :
- 94V-0
- Feature :
- Board Guide
- Product :
- Connectors
- Factory Lead Time :
- 12 Weeks
- Housing Material :
- Thermoplastic
- Termination Type :
- Surface Mount
- Mount :
- Surface Mount
- Series :
- PULSEJACK™ J3
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Surface Mount
- Gender :
- FEMALE
- Base/Housing Material :
- Thermoplastic
- Filter Feature :
- yes
- Product Category :
- Modular Connectors / Ethernet Connectors
- MIL Conformance :
- No
- Packaging :
- Tape and Reel (TR)
- Product Length :
- 16.1 mm
- Mixed Contacts :
- No
- Number of Cores per Jack :
- 5
- Shield Material :
- Brass
- Termination Style :
- SMD/SMT
- Number of Terminals :
- 12
- Total Number of Contacts :
- 8
- Number of Rows :
- 1
- Body Orientation :
- RIGHT ANGLE
- Maximum Operating Temperature :
- + 70 C
- Mounting Angle :
- RIGHT ANGLE
- Tab Direction :
- UP
- Connector Type :
- RJ45
- Additional Feature :
- PULSEJACK, SHIELDED
- Color :
- Green, Yellow
- Contact Gender :
- FEMALE
- Configuration :
- 1x1
- Brand :
- Pulse Electronics
- Mounting :
- Surface Mount
- Pitch (mm) :
- 1.02(mm)
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- 0°C~70°C
- Contact Material :
- Phosphor Bronze
- Product Depth (mm) :
- 25.4(mm)
- Length :
- 16.1mm
- Positions Loaded :
- 8
- Orientation :
- 90° Angle (Right)
- Product Length (mm) :
- 16.1(mm)
- Shielding :
- Shielded
- Radiation Hardening :
- No
- Subcategory :
- Modular Connectors / Ethernet Connectors
- Type :
- RJ-45 Integrated Magnetics
- Operating Temp Range :
- 0C to 70C
- Shell Material :
- Brass
- Number of Ports :
- 1
- Depth :
- 25.4mm
- Application :
- 10/100 Base-TX
- Manufacturer :
- Pulse
- ECCN Code :
- EAR99
- Empty Shell :
- No
- Number of Contacts :
- 8 POS
- Reach Compliance Code :
- Compliant
- Pitch :
- 1.02mm
- Shell Finish :
- Nickel
- Product Type :
- Modular Connectors / Ethernet Connectors
- Applications :
- 10/100 Base-TX
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold
- Contact Finish :
- Gold
- Published :
- 2007
- Product Height (mm) :
- 13.61(mm)
- Termination Method :
- Solder
- Minimum Operating Temperature :
- 0 C
- IEC Conformance :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
