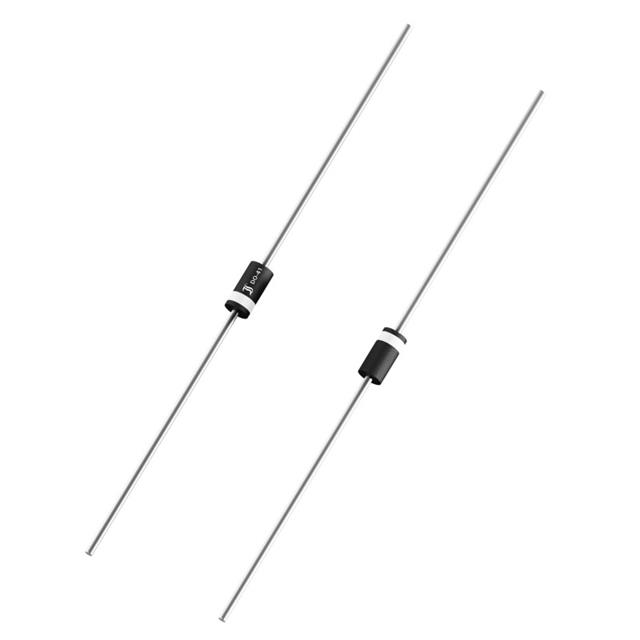

HV1.5

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Case Connection :

Isolated

Number of Terminals :

2

Output Current-Max :

0.5 A

Mounting :

Through Hole

Reverse Recovery Time-Max :

0.4 μs

Subcategory :

Rectifier Diodes

PCB changed :

2

Minimum Operating Temperature (°C) :

-50

Peak Reverse Recovery Time (ns) :

400

ECCN Code :

EAR99

Number of Elements :

1

Rep Pk Reverse Voltage-Max :

1500 V

Peak Reverse Current (uA) :

3

Lead Shape :

Through Hole

Standard Package Name :

DO-204-AL

Qualification Status :

Not Qualified

JEDEC-95 Code :

DO-204AL

Type :

Switching Diode

Diode Type :

RECTIFIER DIODE

Terminal Form :

Wire

Peak Reverse Repetitive Voltage (V) :

1500

Surface Mount :

No

HTS Code :

8541.10.00.70

RoHS Status :

Yes with exemptions

ECCN (US) :

EAR99

Pin Count :

2

Terminal Position :

Axial

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package Shape :

Round

Diameter :

2.6

Maximum Continuous Forward Current (A) :

0.5@Ta=50C

Peak Non-Repetitive Surge Current (A) :

30

Military :

No

Reach Compliance Code :

Compliant

JESD-30 Code :

O-PALF-W2

Supplier Package :

DO-41

HTS :

8541.10.00.70

Package Length :

5.1

Peak Forward Voltage (V) :

3

Diode Element Material :

SILICON

Non-rep Pk Forward Current-Max :

30 A

Maximum Operating Temperature (°C) :

150

Configuration :

Single

Packaging :

Ammo

Manufacturer :

Diotec Semiconductor AG
