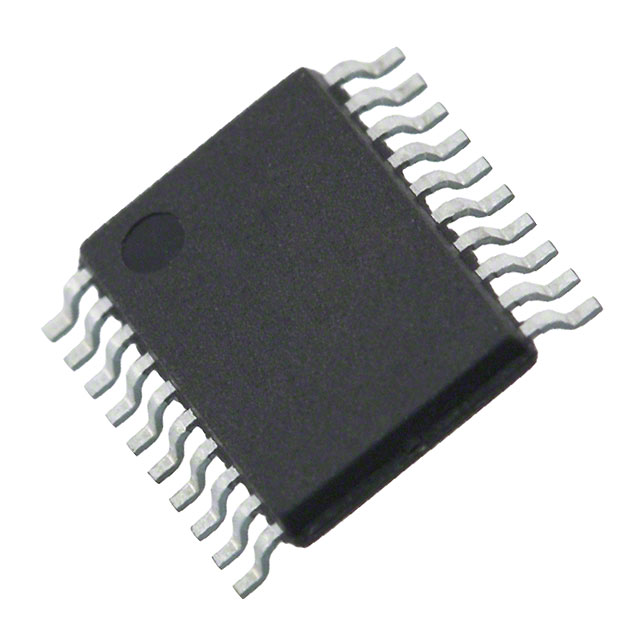

AS1531

Manufacturer :

ams

Product Category :

Analog to Digital Converters (ADC)

Min Supply Voltage :

2.7V

Interface :

SPI, Serial

Supply Type :

Single

Number of Inputs :

4, 8

Voltage - Supply, Analog :

2.7V~3.6V

Input Type :

Differential, Pseudo-Differential, Single Ended

RoHS Status :

RoHS Compliant

Reach Compliance Code :

Unknown

Sampling Rate :

300 sps

Number of Channels :

8

Number of Pins :

20

Voltage - Supply, Digital :

2.7V~3.6V

Reference Type :

External, Internal

Number of Bits :

12

Packaging :

Tube

Mounting Type :

Surface Mount

Power Consumption :

559mW

Max Power Dissipation :

559mW

Number of A/D Converters :

1

Package / Case :

20-TSSOP (0.173, 4.40mm Width)

Data Interface :

SPI

Max Supply Voltage :

3.6V

Differential Nonlinearity :

1 LSB

Configuration :

S/H-ADC

Architecture :

SAR

Signal to Noise Ratio (SNR) :

70 dB

Resolution :

1.5 B

Operating Temperature :

-40°C~85°C

Ratio - S/H:ADC :

1:1

Conversion Rate :

300 ksps

Lead Free :

Lead Free

Sampling Rate (Per Second) :

300k

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

REACH SVHC :

No SVHC

Nominal Supply Current :

2.7mA
