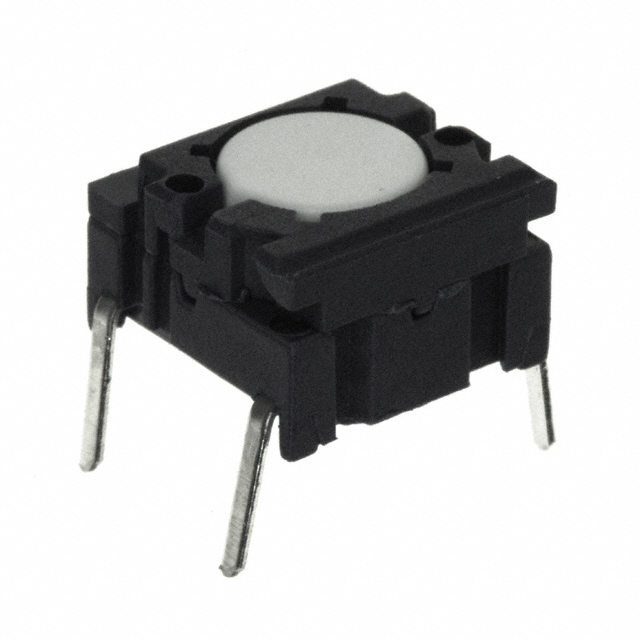

3ATL6
Or copy the link below:
- Mfr.Part #
- 3ATL6
- Manufacturer
- MEC switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 25,444
- In Stock ：
- 25,444
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- MEC switches
- Product Category :
- Reach Compliance Code :
- Unknown
- Ratings :
- Dust Tight, IP67, Waterproof
- Actuator Type :
- Plunger for Cap
- Body Length or Diameter :
- 12.4968mm
- Published :
- 2002
- Series :
- Multimec® 3
- Actuator Color :
- White
- Actuator Material :
- Polybutylene Terephthalate (PBT)
- Termination :
- PC Pin
- Actuator Orientation :
- Top Actuated
- Operating Temperature :
- -40°C~115°C
- Contact Plating :
- Silver
- Length - Termination :
- 0.157 inch
- Electrical Life :
- 10000000 Cycle(s)
- Contact Current Rating :
- 50mA
- Contact Function :
- OFF-(ON)
- Circuit :
- SPST-NO
- Test Voltage :
- 250V
- Current Rating :
- 50mA
- Packaging :
- Tube
- Contact Current(DC)-Max :
- 0.05A
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Operating Force :
- 300gf
- Throw Configuration :
- SPST
- Switch Travel :
- 1.00mm
- Material :
- Plastic
- Contact (DC) Max Rating R Load :
- 0.05A@24VDC
- RoHS Status :
- RoHS Compliant
- Illumination :
- Non-Illuminated
- Feature :
- Sealed - Flux Protection
- Mechanical Life :
- 10,000,000 Cycles
- Mounting Type :
- Through Hole
- REACH SVHC :
- No SVHC
- Contact Material :
- Gold, Silver
- Switch Function :
- Off-Mom
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Termination Style :
- PC Pin
- Outline :
- 10.10mm x 10.10mm
- Body Height :
- 6.4008mm
- Actuator Height off PCB, Vertical :
- 6.40mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Width :
- 12.5mm
- Datasheets
- 3ATL6
3ATL6 Documents
3ATL6 datasheet pdf and Tactile Switches product details from MEC Switches stock available at
