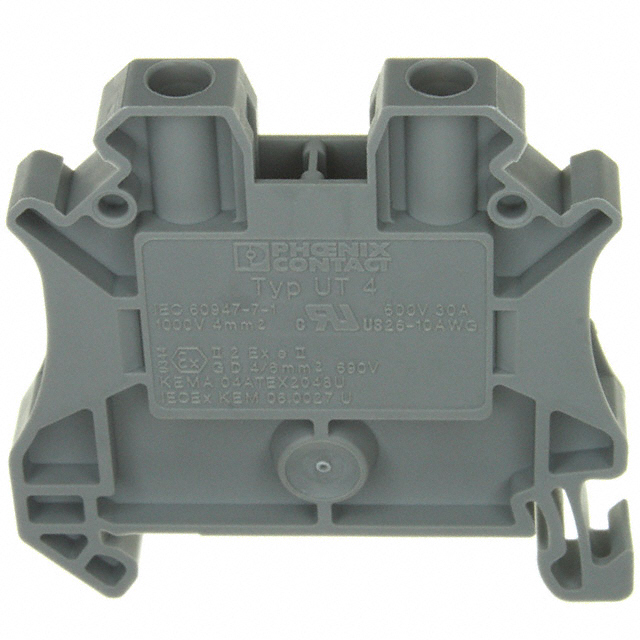

3044102

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Number of Positions :

2

Number of Rows :

2

Factory Lead Time :

7 Weeks

Type :

Feed Through

Length :

47.7mm

Published :

2005

Moisture Sensitivity Level (MSL) :

Not Applicable

Voltage - Rated AC :

1kV

Termination Style :

Screw

Wire Gauge (Min) :

10 AWG

Mount :

Through Hole

Voltage - Rated DC :

800V

Lead Pitch :

6.2mm

REACH SVHC :

No SVHC

Material Flammability Rating :

UL94 V-0

Width :

6.2mm

Flammability Rating :

UL94 V-0

Contact Material :

Copper

Max Operating Temperature :

110°C

Max Current Rating :

41A

Current - IEC :

32A

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Packaging :

Bulk

Approval Agency :

CB, CSA, UL, VDE, cULus

Color :

Gray

Material - Insulation :

Polyamide (PA), Nylon

Series :

CLIPLINE UT

Depth :

6.2mm

Number of Decks :

1

Pbfree Code :

yes

Min Operating Temperature :

-50°C

Max Supply Voltage :

1kV

Weight :

9.198003g

Voltage :

600V

Current Rating :

41A

HTS Code :

8536.90.40.00

ECCN Code :

EAR99

Voltage - IEC :

1000V

Wire/Cable Gauge :

26 AWG

Orientation :

Straight

Safety Approval :

CSA; CUL; EN; IEC; KEMA; UL

Stripping Length :

9mm

Housing Material :

Polyamide

Current :

30A

Radiation Hardening :

No

Number of Contacts :

1

Height :

55mm

RoHS Status :

RoHS Compliant

Wire Gauge (Max) :

26 AWG

Wire Gauge or Range - AWG :

10-26 AWG
