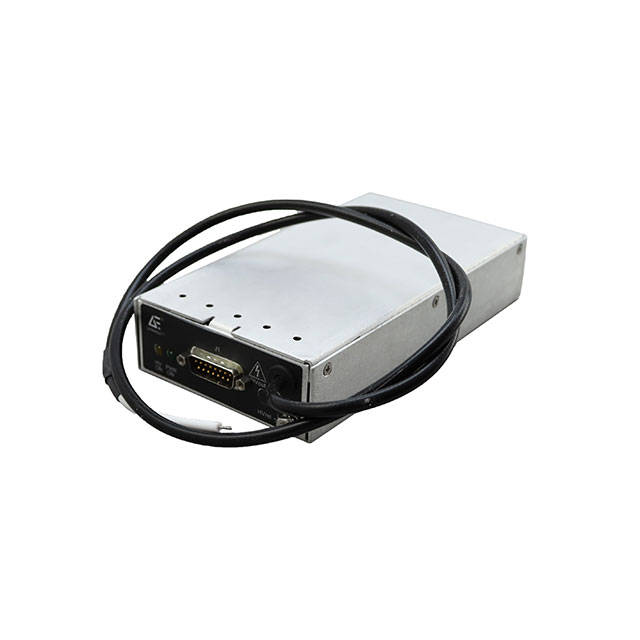

20LE24-N15

Manufacturer :

Advanced Energy

Product Category :

Standard Number :

62368-1

Maximum Operating Temperature :

+ 45 C

Output Power :

15 W

Voltage - Input (Min) :

23V

Product :

Non-Isolated / POL

Voltage - Output 2 :

-

Current - Output (Max) :

750µA

Package :

Bulk

Height :

38.16 mm

Base Product Number :

20LE24

Voltage - Output 1 :

20000V

Type :

Enclosed, High Voltage

Operating Temperature :

10°C ~ 45°C

Efficiency :

-

Number of Outputs :

1

Mounting Type :

Chassis Mount

Minimum Operating Temperature :

- 10 C

Voltage - Output 3 :

-

Applications :

ITE (Commercial)

Manufacturer :

Advanced Energy

Product Type :

Non-Isolated DC-DC Converters

Subcategory :

DC-DC Converter

RoHS :

Details

Approval Agency :

CE, cURus

Brand :

Advanced Energy

Voltage - Output 4 :

-

Product Category :

Non-Isolated DC/DC Converters

Length :

184.91 mm

Power (Watts) :

15W

Series :

Ultravolt? LE

Mounting Style :

Chassis Mount

Size / Dimension :

7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm)

Product Status :

Active

Width :

100 mm

Voltage - Input (Max) :

30V
