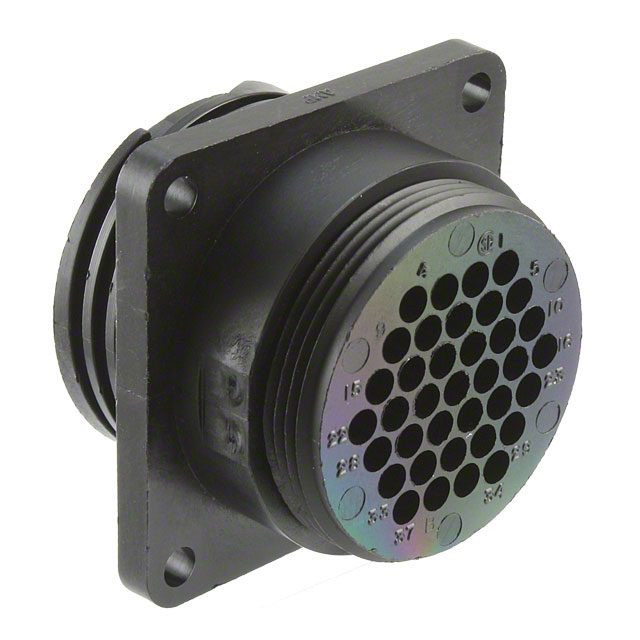

206151-1
Or copy the link below:
- Mfr.Part #
- 206151-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 37POS PNL MT
- Stock
- 7,762
- In Stock ：
- 7,762
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Operating Supply Voltage :
- 600V
- Current Rating :
- 13A
- Length :
- 34.29mm
- Housing Color :
- Black
- Insulation Resistance :
- 5GOhm
- MIL Conformance :
- No
- Contact Type :
- Crimp
- Gender :
- Receptacle
- Voltage - Rated :
- 250V
- Total Number of Contacts :
- 37
- Insulation Material :
- Thermoplastic
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- Connector Type :
- Receptacle Housing
- Series :
- CPC Series 1
- Material :
- Plastic
- Mounting Feature :
- Flange
- Contact Size :
- 16
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- ELV :
- Compliant
- Published :
- 1997
- Mating Retention :
- With
- Depth :
- 44.45mm
- Shell Size - Insert :
- 23-37
- Max Voltage Rating (AC) :
- 250V
- RoHS Status :
- RoHS Compliant
- Contact Gender :
- Male
- Empty Shell :
- yes
- IEC Conformance :
- No
- Filter Feature :
- No
- Ratings :
- IP65
- Mount :
- Panel
- Fastening Type :
- Threaded
- REACH SVHC :
- No SVHC
- Operating Temperature :
- -55°C~105°C
- Note :
- Contacts Not Included
- Voltage - Rated AC :
- 250V
- Factory Lead Time :
- 5 Weeks
- Number of Terminations :
- 37
- Shielding :
- Unshielded
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Contact Shape :
- Circular
- Type :
- For Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Material :
- Glass, Thermoplastic
- Packaging :
- Bulk
- Orientation :
- A
- Insulation Diameter :
- 2.54 mm
- Mounting Type :
- Panel Mount
- DIN Conformance :
- No
- Shell Material :
- Polyamide (PA), Nylon
- Number of Ports :
- 1
- Number of Power Positions :
- 0
- Datasheets
- 206151-1
Receptacle Housing Polyamide (PA), Nylon Panel Mount Bulk Threaded Unshielded Contacts Not Included CPC Series 1
206151-1 Overview
The product comes in a package of Receptacle Housing.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the CPC Series 1 Series.There are many similarities between this part and other For Male Pins products.For mounting this part, a Panel socket is required.The device has 1 ports for managing a variety of tasks.The term 37 termination refers to the practice of terminating a transmission line with a device that matches the characteristic impedance of the transmission line.
206151-1 Features
37 basic kinds of terminations
CPC Series 1 series
206151-1 Applications
There are a lot of TE Connectivity AMP Connectors
206151-1 Circular Connectors applications.
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
