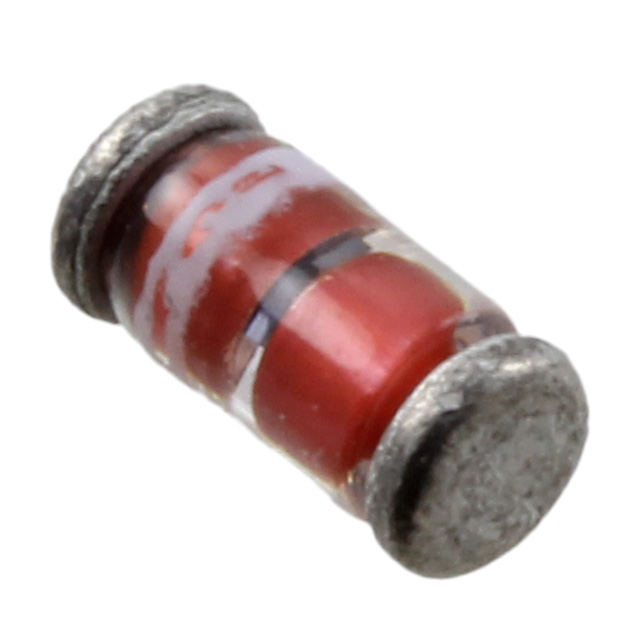

1N4100UR
- Mfr.Part #
- 1N4100UR
- Manufacturer
- Microchip Technology
- Package / Case
- DO-213AA (Glass)
- Datasheet
- Download
- Description
- DIODE ZENER 7.5V 500MW DO213AA
- Stock
- 38,638
- In Stock :
- 38,638
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- Diodes - Zener - Single
- Max Power Dissipation :
- 500mW
- Operating Temperature :
- -65°C~175°C
- Zener Voltage :
- 7.5V
- Package / Case :
- DO-213AA (Glass)
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Mount :
- Surface Mount
- Voltage - Forward (Vf) (Max) @ If :
- 1.1V @ 200mA
- Additional Feature :
- METALLURGICALLY BONDED
- Reference Voltage :
- 7.5V
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Number of Pins :
- 2
- Pbfree Code :
- No
- Polarity :
- Unidirectional
- Tolerance :
- ±5%
- Factory Lead Time :
- 13 Weeks
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Voltage Tol-Max :
- 5%
- Packaging :
- Bulk
- Case Connection :
- Isolated
- Pin Count :
- 2
- JESD-609 Code :
- e0
- Terminal Form :
- WRAP AROUND
- HTS Code :
- 8541.10.00.50
- Impedance-Max :
- 200Ohm
- Diode Type :
- ZENER DIODE
- Radiation Hardening :
- yes
- ECCN Code :
- EAR99
- Qualification Status :
- Not Qualified
- Impedance :
- 200Ohm
- Max Reverse Leakage Current :
- 1μA
- Base Part Number :
- 1N4100
- Diode Element Material :
- SILICON
- Terminal Position :
- END
- Mounting Type :
- Surface Mount
- Lifecycle Status :
- IN PRODUCTION (Last Updated: 1 month ago)
- Number of Elements :
- 1
- Number of Terminations :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current - Reverse Leakage @ Vr :
- 1μA @ 5.7V
- Element Configuration :
- Single
- RoHS Status :
- Non-RoHS Compliant
- Reach Compliance Code :
- not_compliant
- Datasheets
- 1N4100UR
ZENER DIODE 200Ohm ±5% 7.5V 1μA @ 5.7V -65°C~175°C 500mW 2 Terminations DO-213AA (Glass)
1N4100UR Overview
A reverse leakage current of 1μA @ 5.7V is required to supply this electrical device.Voltage (Tol) is limited to 5%.1μA is the maximum reverse leakage current.1.1V @ 200mA is reached when the maximum voltage - Forward (Vf) is supplied for its operation.
1N4100UR Features
reverse leakage current of 1μA @ 5.7V
1μA @ 5.7V is the maximum voltage (Tol)
Reverse leakage current reaches 1μA
1N4100UR Applications
There are a lot of Microsemi Corporation
1N4100UR applications of zener single diodes.
