Diodes - RF

2,482 Records

Browse Diodes - RF components including ICs, modules, and related parts. Datasheets, alternatives, and global sourcing available.

Part	Manufacturer	Description	Price		Stock	Action
SMS7630-079LF	Skyworks Solutions, Inc.	RF DIODE SCHOTTKY 1V 75MW SC79	-	PDF RFQ	2,182 In-stock Warehouse	ADD TO RFQ
SMS3922-079LF	Skyworks Solutions, Inc.	RF DIODE SCHOTTKY 8V 75MW SC79	-	PDF RFQ	47,465 In-stock Warehouse	ADD TO RFQ
MADL-011023-14150T	MACOM Technology Solutions	RF DIODE PIN 6TDFN	-	PDF RFQ	4,067 In-stock Warehouse	ADD TO RFQ
MADL-011021-14150T	MACOM Technology Solutions	RF DIODE PIN 6TDFN	-	PDF RFQ	3,027 In-stock Warehouse	ADD TO RFQ
SKY16602-632LF	Skyworks Solutions, Inc.	RF DIODE PIN 20V 12W 2MLP	-	PDF RFQ	2,167 In-stock Warehouse	ADD TO RFQ
MADP-000402-12530P	MACOM Technology Solutions	DIODE,PIN,SURMOUNT	-	PDF RFQ	14,195 In-stock Warehouse	ADD TO RFQ

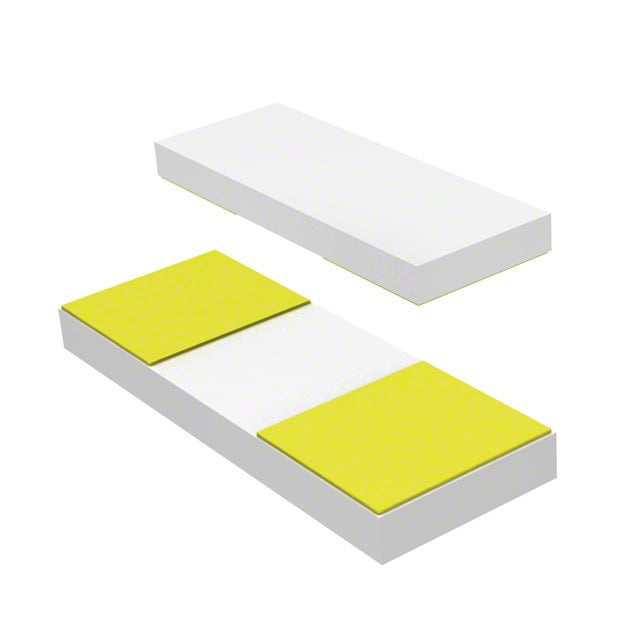

MADP-000907-14020W	MACOM Technology Solutions	RF DIODE PIN 45V 100MW 2FLIPCHIP	-	PDF RFQ	3,788 In-stock Warehouse	ADD TO RFQ
MSWSE-040-10	MACOM Technology Solutions	RF DIODE PIN 250V 0805	-	PDF RFQ	14,608 In-stock Warehouse	ADD TO RFQ

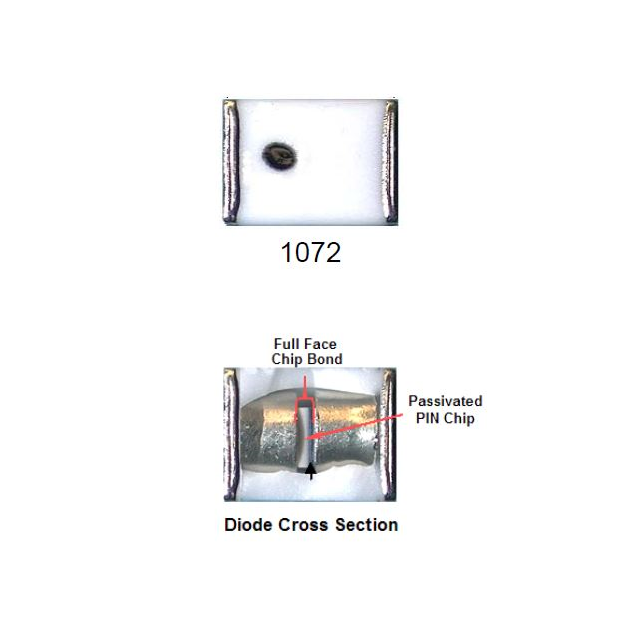

MADP-011034-10720T	MACOM Technology Solutions	DIODE,PIN,1072	-	PDF RFQ	1,990 In-stock Warehouse	ADD TO RFQ
DSM8100-000	Skyworks Solutions, Inc.	RF DIODE PIN 60V 250MW	-	PDF RFQ	4,489 In-stock Warehouse	ADD TO RFQ
BAR6302VH6327XTSA1	Infineon Technologies	RF DIODE PIN 50V 250MW SC79-2	-	PDF RFQ	31,701 In-stock Warehouse	ADD TO RFQ
BAT17E6327HTSA1	Infineon Technologies	DIODE SCHOTTKY 4V 150MW SOT23-3	-	PDF RFQ	223,835 In-stock Warehouse	ADD TO RFQ
BAR6404E6327HTSA1	Infineon Technologies	RF DIODE PIN 150V 250MW SOT23-3	-	PDF RFQ	205 In-stock Warehouse	ADD TO RFQ
MMBD352LT1G	onsemi	DIODE SCHOTTKY 7V 225MW SOT23-3	-	PDF RFQ	97 In-stock Warehouse	ADD TO RFQ
1N5711WS-7-F	Diodes Incorporated	DIODE SCHOTTKY 70V 150MW SOD323	-	PDF RFQ	353,193 In-stock Warehouse	ADD TO RFQ
MMBD452LT1G	onsemi	DIODE SCHOTTKY 30V 225MW SOT23-3	-	PDF RFQ	2,676 In-stock Warehouse	ADD TO RFQ
BAT1704WH6327XTSA1	Infineon Technologies	DIODE SCHOTTKY 4V 150MW SOT323-3	-	PDF RFQ	201,983 In-stock Warehouse	ADD TO RFQ
BA479G-TR	Vishay	RF DIODE PIN 30V DO35	-	PDF RFQ	44,665 In-stock Warehouse	ADD TO RFQ
BAT6804E6327HTSA1	Infineon Technologies	DIODE SCHOTTKY 8V 150MW SOT23-3	-	PDF RFQ	1,571 In-stock Warehouse	ADD TO RFQ
1SS351-TB-E	onsemi	RF DIODE SCHOTTKY 5V 3CP	-	PDF RFQ	37,303 In-stock Warehouse	ADD TO RFQ

Diodes - RF

Hotline

Skype

WhatsApp

E-mail
