Diodes - RF

2,482 Records

Browse Diodes - RF components including ICs, modules, and related parts. Datasheets, alternatives, and global sourcing available.

Part	Manufacturer	Description	Price		Stock	Action
MSS50-B46-E45R	MACOM Technology Solutions	COM SCHOTTKY, BEAMLEAD, E45R	-	PDF RFQ	75 In-stock Warehouse	ADD TO RFQ

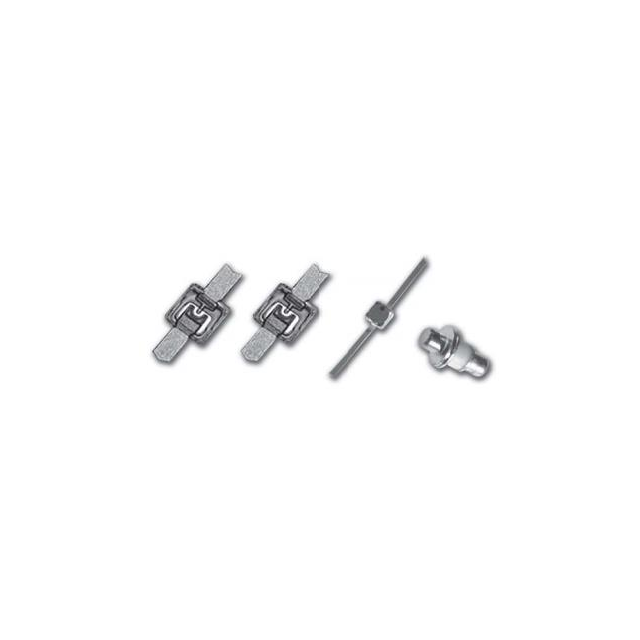

MSS30-142-E28	MACOM Technology Solutions	SCHOTTKY DIODE,BEAMLEAD, E28-S	-	PDF RFQ	75 In-stock Warehouse	ADD TO RFQ
MSS60-848-E45	MACOM Technology Solutions	SCHOTTKY DIODE,BEAMLEAD, E45-1	-	PDF RFQ	100 In-stock Warehouse	ADD TO RFQ
MA4PK3000-1252	MACOM Technology Solutions	DIODE,PIN,CHIP,CERAMIC,SI,ODS-12	-	PDF RFQ	40 In-stock Warehouse	ADD TO RFQ

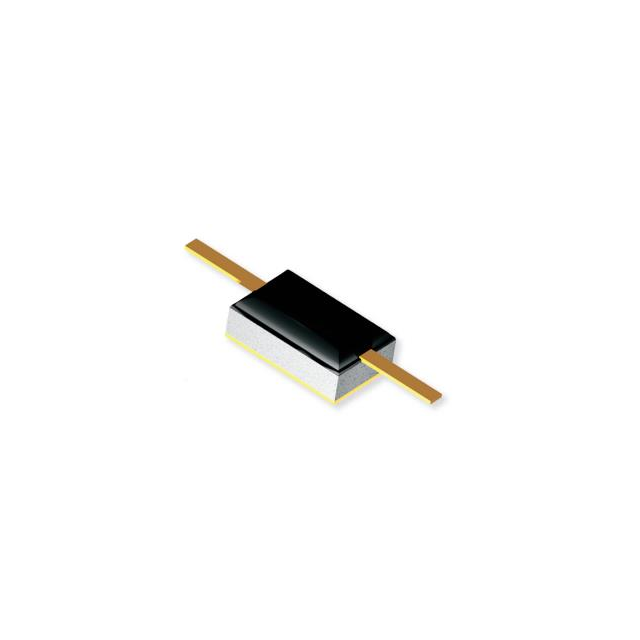

MEST2G-080-025	MACOM Technology Solutions	SCHOTTKY, SI BEAM LEAD,CM27	-	PDF RFQ	11 In-stock Warehouse	ADD TO RFQ
MADL-011012-001	MACOM Technology Solutions	RF DIODE 360W PWR LIMITER SMD	-	PDF RFQ	25 In-stock Warehouse	ADD TO RFQ
GA01PNS150-220	GeneSiC Semiconductor	RF DIODE PIN 15000V	-	PDF RFQ	3 In-stock Warehouse	ADD TO RFQ
BAR63-02LE6327	Infineon Technologies	PIN DIODE, 50V V(BR)	-	PDF RFQ	9,643 In-stock Warehouse	ADD TO RFQ
BAR6406WE6327	Infineon Technologies	RF PIN DIODE > ANTENNA SWITCH	-	PDF RFQ	17,993 In-stock Warehouse	ADD TO RFQ
BAT17-06WE6327	Infineon Technologies	RF MIXER/DETECTOR SCHOTTKY DIODE	-	PDF RFQ	6,000 In-stock Warehouse	ADD TO RFQ
BAT17-06WH6327	Infineon Technologies	RF MIXER/DETECTOR SCHOTTKY DIODE	-	PDF RFQ	28,391 In-stock Warehouse	ADD TO RFQ
BAT 17-05W H6327	Infineon Technologies	RF MIXER/DETECTOR SCHOTTKY DIODE	-	PDF RFQ	10,000 In-stock Warehouse	ADD TO RFQ
BAR64-06WH6327	Infineon Technologies	RF PIN DIODE > ANTENNA SWITCH	-	PDF RFQ	15,338 In-stock Warehouse	ADD TO RFQ
BAT-17-07	Infineon Technologies	MIXER DIODE, VHF TO UHF	-	PDF RFQ	9,816 In-stock Warehouse	ADD TO RFQ
BAR81WE6327	Infineon Technologies	PIN DIODE	-	PDF RFQ	1,098 In-stock Warehouse	ADD TO RFQ
BAT1805E6327HTSA1	Infineon Technologies	PIN DIODE, 35V V(BR)	-	PDF RFQ	44,248 In-stock Warehouse	ADD TO RFQ
BAT15-05WH6327XTSA1	Infineon Technologies	RF MIXER/DETECTOR SCHOTTKY DIODE	-	PDF RFQ	17,039 In-stock Warehouse	ADD TO RFQ
BAT15-05WH6327XTSA3	Infineon Technologies	RF MIXER/DETECTOR SCHOTTKY DIODE	-	PDF RFQ	3,000 In-stock Warehouse	ADD TO RFQ
BAT15-05WH6327XTSA2	Infineon Technologies	RF MIXER/DETECTOR SCHOTTKY DIODE	-	PDF RFQ	3,000 In-stock Warehouse	ADD TO RFQ
BAT15-098LRH	Infineon Technologies	MIXER DIODE, LOW BARRIER, X BAND	-	PDF RFQ	2,998 In-stock Warehouse	ADD TO RFQ

Diodes - RF

Hotline

Skype

WhatsApp

E-mail
