Backplane Connector Contacts

2,912 Records

Part	Manufacturer	Description	Price		Stock	Action
09060007474	HARTING	CONTACT SCKT SIGNAL 28AWG 250PCS	-	PDF RFQ	150 In-stock Warehouse	ADD TO RFQ
09060007422	HARTING	CONTACT SOCKET POWER 16-20AWG	-	PDF RFQ	397 In-stock Warehouse	ADD TO RFQ
QR/P1-SC1A-111(12)	Hirose	CONTACT SOCKET PWR 18-24AWG GOLD	-	PDF RFQ	94 In-stock Warehouse	ADD TO RFQ

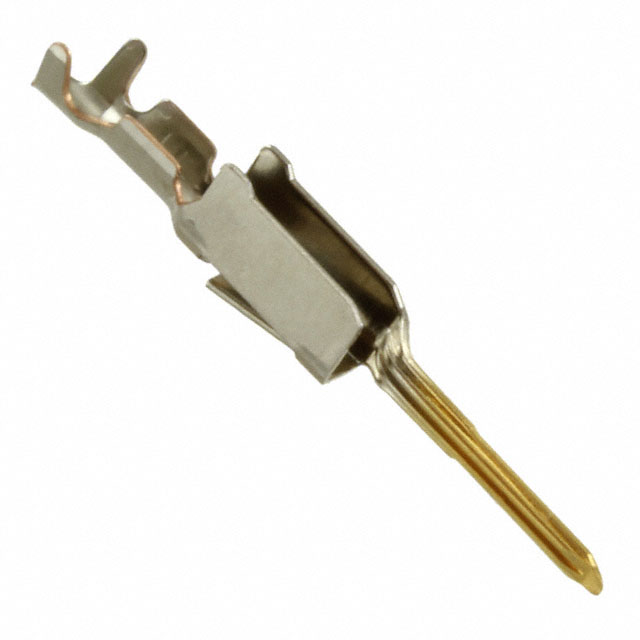

09060009551	HARTING	CONTACT PIN SIGNAL 20-26AWG	-	PDF RFQ	1,088 In-stock Warehouse	ADD TO RFQ
QR/P1-SC1B-121(12)	Hirose	CONTACT SOCKET PWR 14-16AWG GOLD	-	PDF RFQ	384 In-stock Warehouse	ADD TO RFQ
QR/P1-PC1B-121(12)	Hirose	CONTACT PIN POWER 14-16AWG GOLD	-	PDF RFQ	12 In-stock Warehouse	ADD TO RFQ
09030006201	HARTING	DIN-SGNL HI CURRENT F 10A SLD	-	PDF RFQ	147 In-stock Warehouse	ADD TO RFQ
594211	TE Connectivity	SPCNT COAX F 90 50OHM LP-5 MD	-	PDF RFQ	69 In-stock Warehouse	ADD TO RFQ
09060008484	HARTING	CONTACT SOCKET POWER 24-28AWG	-	PDF RFQ	846 In-stock Warehouse	ADD TO RFQ
09060009571	HARTING	CONTACT PIN SIGNAL 20-26AWG	-	PDF RFQ	910 In-stock Warehouse	ADD TO RFQ
09060006420	HARTING	DIN-POWER CRIMP 2 S,F, AU2	-	PDF RFQ	7,757 In-stock Warehouse	ADD TO RFQ
170314-1	TE Connectivity AMP Connectors	CONTACT NON-GEND SGNL 14-18AWG	-	PDF RFQ	9,070 In-stock Warehouse	ADD TO RFQ
1650177-4	TE Connectivity AMP Connectors	CONTACT PIN POWER 12-14AWG GOLD	-	PDF RFQ	819 In-stock Warehouse	ADD TO RFQ
1738011-1	TE Connectivity AMP Connectors	CONTACT PIN 20-24AWG GOLD	-	PDF RFQ	842 In-stock Warehouse	ADD TO RFQ
09030006133	HARTING	DIN-SIGNAL HIGH CURRENT M 40A S	-	PDF RFQ	61 In-stock Warehouse	ADD TO RFQ
09030006213	HARTING	CONTACT SOCKET POWER 16AWG	-	PDF RFQ	80 In-stock Warehouse	ADD TO RFQ
1766268-1	TE Connectivity AMP Connectors	CONTACT PIN POWER SILVER	-	PDF RFQ	54 In-stock Warehouse	ADD TO RFQ
6648234-1	TE Connectivity AMP Connectors	CONTACT SOCKET POWER 0AWG GOLD	-	PDF RFQ	51 In-stock Warehouse	ADD TO RFQ
148513-1	TE Connectivity AMP Connectors	CONTACT SOCKET POWER GOLD	-	PDF RFQ	46 In-stock Warehouse	ADD TO RFQ
1776458-1	TE Connectivity AMP Connectors	CONTACT FEMALE BAND POWER GOLD	-	PDF RFQ	67 In-stock Warehouse	ADD TO RFQ

Backplane Connector Contacts

Hotline

Skype

WhatsApp

E-mail
